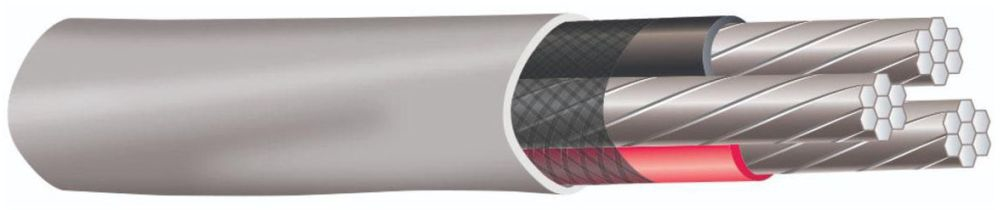

The SER-4/0-4/0-4/0-4/0-2/0-AL MASTER Aluminum Wire cable provides reliable electrical service entrance connections for residential and business applications. It offers high current capacity and durability for main power distribution systems in compliance with NEC standards when you build or upgrade electrical systems.
- Conductor configuration: Four 4/0 AWG gauge stranded aluminum alloy conductors with 2/0 AWG gauge bare ground for optimal electrical performance and connector compatibility
- Rating capacity: Supports 150-205 amperes depending on temperature (60°C, 75°C, or 90°C) for various installation requirements
- Electrical specifications: 600 volt rating with UL 83/854 approval for safety and performance in demanding environments
- Physical properties: 1672 mil outer diameter with protective PVC jacket coat for durability and long-term reliability
- Packaging: 1000 feet length on reel for efficient installation and handling on residential or job sites when you build electrical infrastructure
Features
Additional Information
Specifications
- Type: SER
- Voltage Rating: 600 V
- Current Rating: 150 Ampere (60 Deg C), 180 Ampere (75 Deg C), 205 Ampere (90 Deg C)
- Conductor Material: Aluminum Alloy
- Conductor Size: (4) 4/0 AWG
- Stranding: Stranded
- Ground Type: Bare Ground
- Ground Conductor Size: 2/0 AWG
- Jacket Material: PVC
- Outer Diameter: 1672 Mil
- Length: 1000 Ft
- Temperature Rating: 90 Deg C (Dry/Wet)
- Weight: 1228 Lb per MFt
- Package Type: Reel
- Approval: UL 83/854
