Features

• Type SE, Service Entrance Cable is Used to Convey Power from the Service Drop to the Meter Base and from the Meter Base to the Distribution Panelboard
• However, it May be Used in All Applications Where Type SE Cable is Permitted
• SE Cable May be Used in Wet or Dry Locations at Temperatures Not to Exceed 90 Deg C

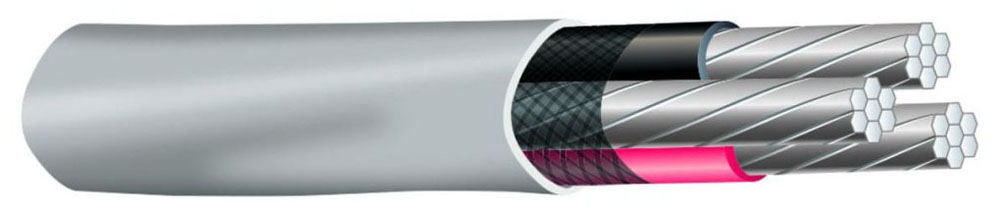

• Type SE Cable is Constructed with Alumaflex AA-8000 Series Aluminum Alloy, Compacted Stranded Conductors
• The Conductors are Covered with a Sunlight Resistant Type XHHW-2-Insulation
• A Reinforcement Tape is Wrapped Around the Conductors for Added Strength and Conformity
• A Gray Sunlight-Resistant Polyvinyl Chloride (PVC) Outer Jacket Covers the Entire Assembly
• Three Phase Conductors and a Bare Neutral

Additional Information

• Constructional Feature Sunlight Resistant

Specifications

• Type: SER
• Voltage Rating: 600 V
• Current Rating: 150 Ampere (60 Deg C), 180 Ampere (75 Deg C), 205 Ampere (90 Deg C)
• Conductor Material: Aluminum
• Conductor Size: (3) 4/0 AWG
• Stranding: Solid
• Ground Type: With Ground Wire
• Ground Conductor Size: 2/0 AWG
• Jacket Material: Gray PVC
• Outer Diameter: 1503 Mil
• Length: 500 Ft
• Temperature Rating: 90 Deg C
• Weight: 960 Lb/Mft
• Package Type: Reel
• Approval: UL
