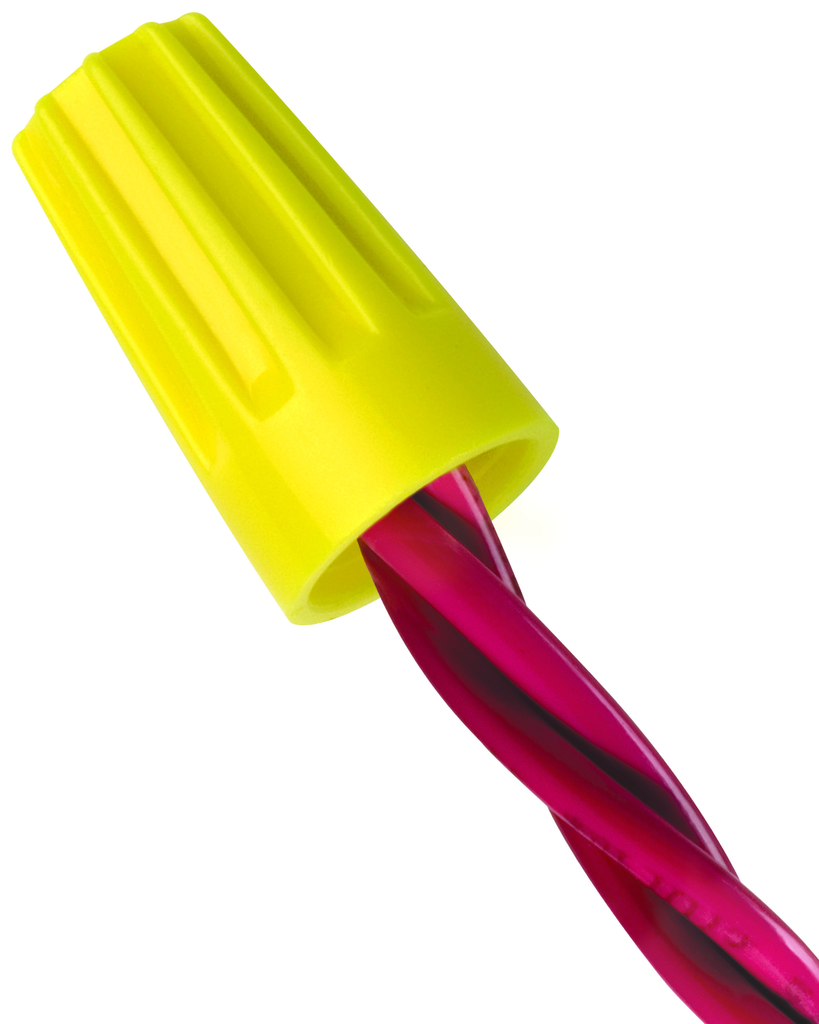

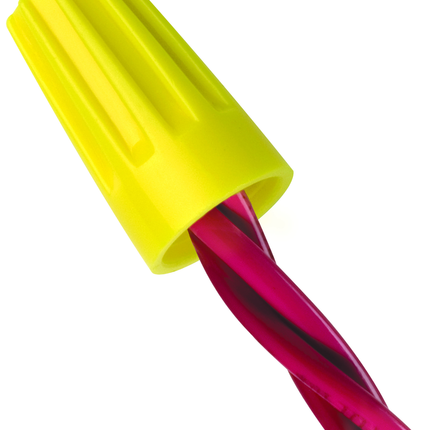

Wire-Nut® Wire Connector, Model 74B® Yellow, Bag of 500 - Electrical Wire Connector

The Wire-Nut® Wire Connector Model 74B® Yellow by IDEAL Industries is designed for insulating or joining two or more conductors. It is a trusted solution in electrical distribution and lighting solutions, providing secure, reusable connections in wire and cable installations. This connector is suitable for copper-to-copper wire combinations in dry locations and supports building wire applications up to 600 volts maximum, with 1000 volts rating for signs and lighting fixtures.

Specifications

• Application: Insulating or Joining 2 or more conductors
• Color: Yellow
• Material: Flame-retardant polypropylene
• Environmental Conditions: UL 94V-2 flame-retardant shell rated at 105°C (221°F)
• Manufacturer Part #: 30-274
• Product Weight: 0.0100 lbs
• Voltage Rating: 600 volts maximum building wire; 1000 volts maximum for signs and fixtures
• UL Listed: UL 486C
• CSA Certified: C22.2 No. 188
• RoHS Compliant
• Wire Strip Length: 3/8" (9.5 mm) for #16 and larger; 7/16" (11 mm) for smaller wires
• Wire Range: Minimum 2 #18 gauge; Maximum 4 #14 gauge with 1 #18 gauge

Features

• Fixed, square-wire spring creates its own threads for a secure connection
• Positive-grip shell design enables fast, easy installation without pre-twisting wires
• Reusable for easy circuit changes and additions
• Wide wire range supports various wire combinations and applications
• Tough, flame-retardant thermoplastic shell withstands environmental extremes
• Designed for use in dry locations only
