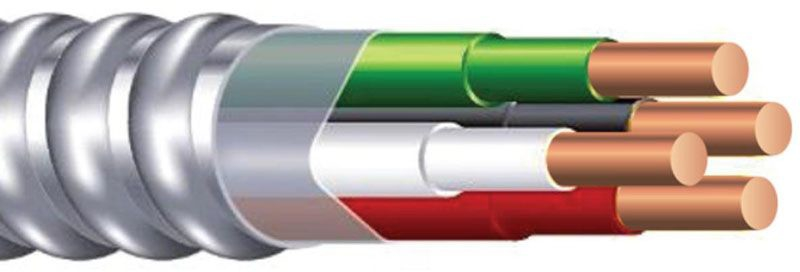

The WIRE MC-AL-6/3-STR-W/GRN-GRD-MASTER is a metal-clad aluminum cable designed for electrical power distribution and control service in residential and industrial buildings. It provides reliable circuit protection with integrated grounding for installations requiring durable wiring solutions and enhanced safety for various voltage applications.
- Build: Aluminum conductors with 6/3 gauge configuration and green grounding wire
- Application: Suitable for indoor installations in walls, ceilings, and conduit systems
- Protection: Metal armor cladding offers enhanced mechanical protection against damage
- Compliance: Manufactured to meet national electrical code requirements for safety
- Installation: Flexible strand design allows for easier pulling through complex pathways
Features
Additional Information
- Application Branch, Feeder and Service Power Distribution, Power, Lighting, Control and Signal Circuits, Fished or Embedded in Plaster, Concealed or Exposed Installations as Aerial Cable on a Messenger, Installation in Cable Tray and Approved Raceways
Specifications
- Type: MC
- Voltage Rating: 600 V
- Current Rating: 55 Ampere (60 Deg C), 65 Ampere (75 Deg C), 75 Ampere (90 Deg C)
- Conductor Material: Soft Drawn Copper
- Conductor Size: 6 AWG
- Number of Conductors: 3
- Stranding: Stranded
- Armor Material: Lightweight Aluminum
- Insulation Material: THHN/THWN
- Color Code: Black/White/Red
- Ground Conductor Type: 8 AWG Green Insulated
- Outer Diameter: 0.756 Inch
- Temperature Rating: 90 Deg C
- Weight: 433 Lb/MFt
- Approval: UL 83/1569/1063, NEC
