WIRE MC-AL-4-4-4-4-6-STR-AL-MASTER
SKU: #261319
Part: #MC-AL-4-4-4-4-6-STR-AL-MASTER
UPC: 980120508122
WIRE MC-AL-4-4-4-4-6-STR-AL-MASTER
SKU: #261319
Part: #MC-AL-4-4-4-4-6-STR-AL-MASTER
UPC: 980120508122
Total Price: $11.88 per foot Sold in increments of 1 foot
Description

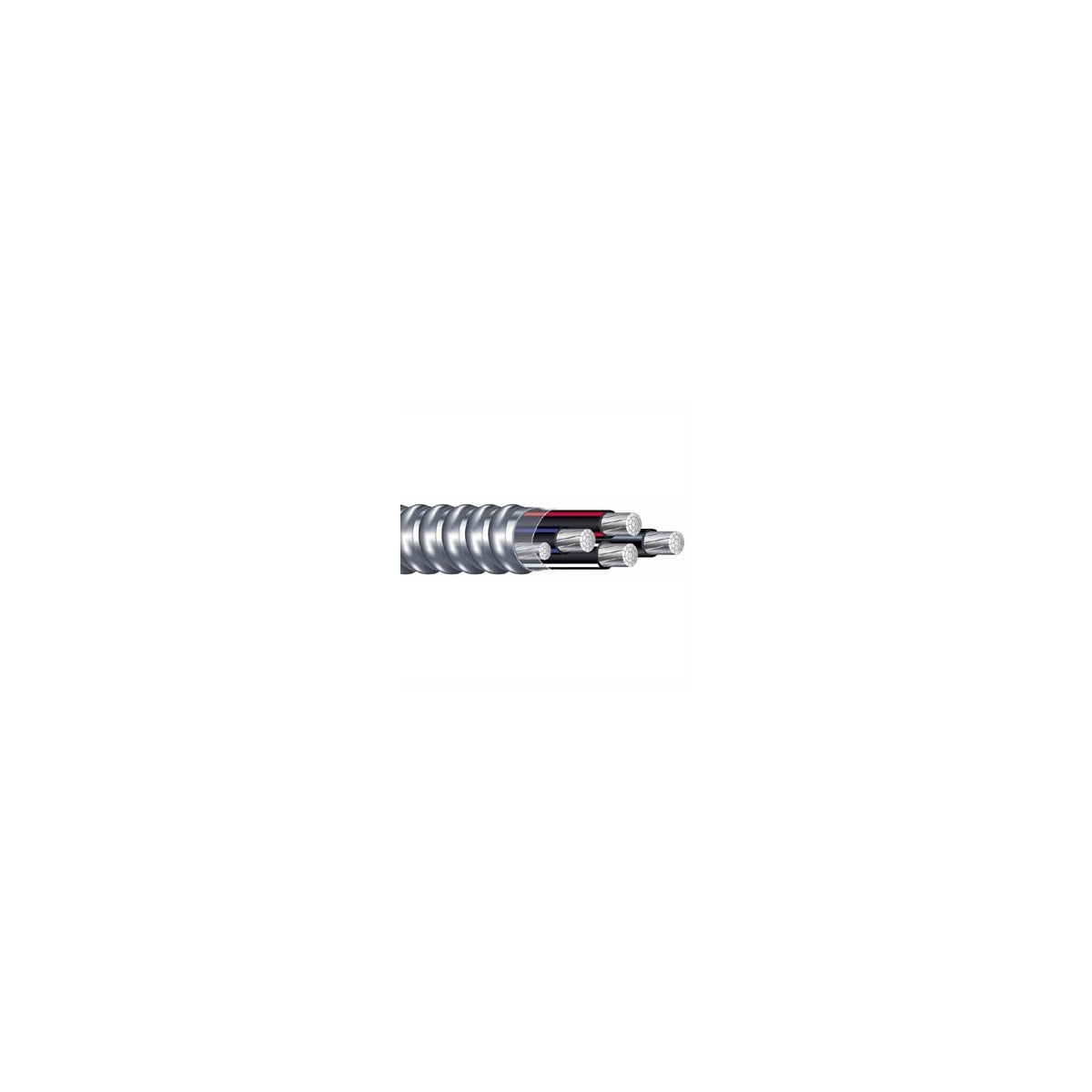

WIRE MC-AL-4-4-4-4-6-STR-AL-MASTER Armored Cable
This armored cable is designed for branch, feeder, and service power distribution applications, suitable for lighting, control, and signal circuits. It features stranded aluminum alloy conductors with XLPE insulation and lightweight aluminum armor, making it ideal for use in both concealed and exposed installations. Electrical distributors and switchgear suppliers will find this cable meets UL 44/1569 standards and supports a voltage rating of 600 V.
Specifications
- Conductor Size: 4 AWG
- Number of Conductors: 4
- Conductor Material: Aluminum
- Insulation Material: XLPE
- Wire Type: STRANDED MC-AL
- Voltage Rating: 600 V
- Armor Material: Lightweight Aluminum
- Ground Conductor Type: 6 AWG Bare Aluminum
- Outer Diameter: 0.949 Inch
- Temperature Rating: 90 Deg C
- Length: Cut to Length (ft)
- Weight: 0.3560 lb
- Approval: UL 44/1569
- Package Type: Reel
Features
- Stranded aluminum alloy conductors for flexibility and durability
- XLPE insulation for enhanced thermal and electrical performance
- Lightweight aluminum armor provides mechanical protection while reducing overall cable weight
- Suitable for branch, feeder, and service power distribution in a variety of installation environments
- UL listed for safety and reliability
