WIRE MC-AL-2/3-STR-CU-500S/R
SKU: #260950
Part: #MC-AL-2/3-STR-CU-500S/R
UPC: 980100346249
WIRE MC-AL-2/3-STR-CU-500S/R
SKU: #260950
Part: #MC-AL-2/3-STR-CU-500S/R
UPC: 980100346249
Description

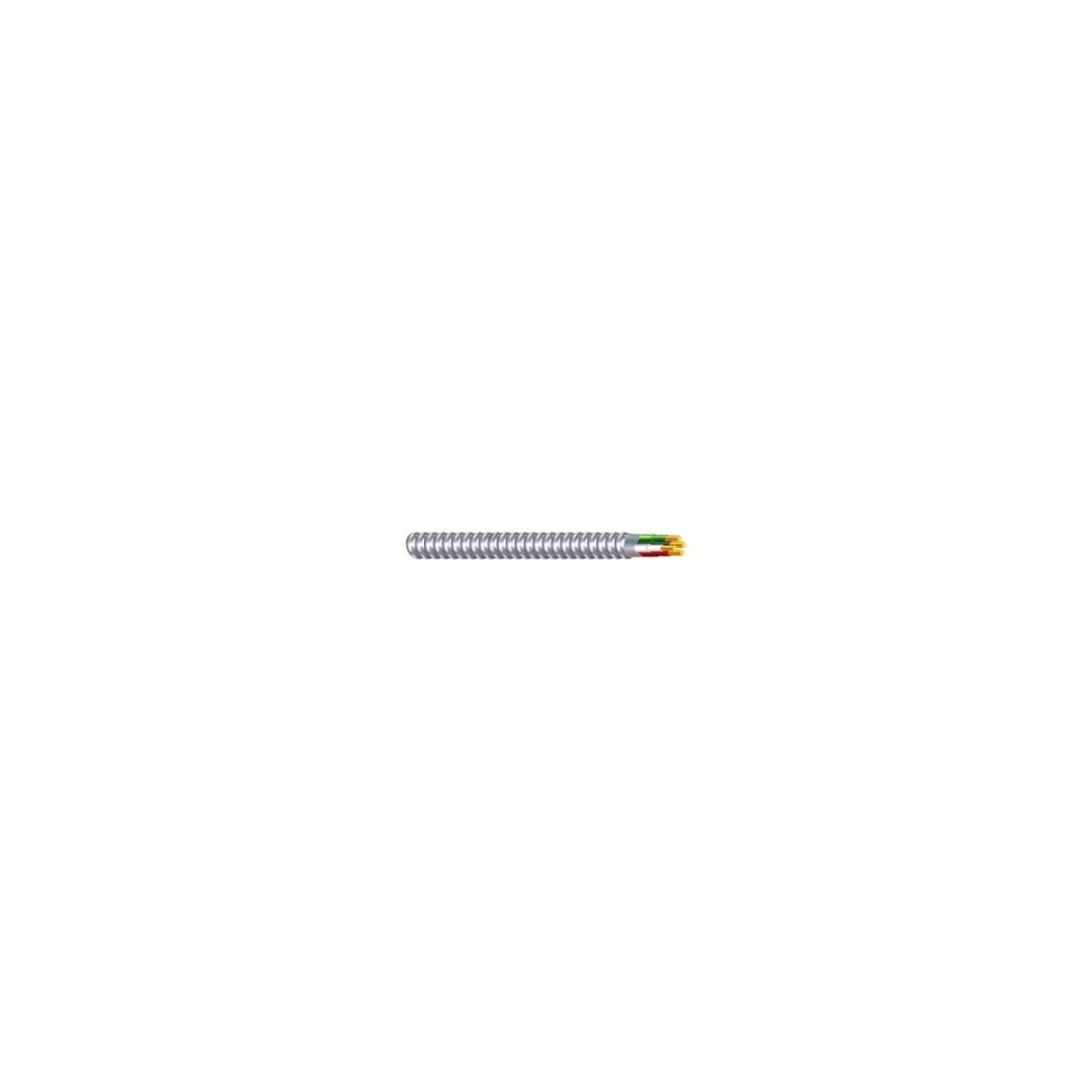

WIRE MC-AL-2/3-STR-CU-500S/R Armored Cable for Electrical Distributor Applications
This armored cable is designed for branch, feeder, and service power distribution, suitable for power, lighting, control, and signal circuits. It is ideal for use by electrical distributors and switchgear suppliers requiring reliable wire and cable solutions for concealed or exposed installations, including aerial cable on a messenger and installation in cable trays and approved raceways.
Specifications
- Manufacturer Part #: MC-AL-2/3-STR-CU-500S/R
- Conductor Material: Copper
- Conductor Size: 2 AWG
- Number of Conductors: 3
- Current Rating: 115 amperes
- Insulation Material: THHN/THWN
- Wire Type: STRANDED MC-AL
- Length: 500 ft
- Color: Silver
Features
- Armored cable construction with lightweight aluminum armor
- Suitable for branch, feeder, and service power distribution circuits
- Approved for use in plaster, concealed or exposed installations
- UL 83/1569/1063 and NEC approved for safety and compliance
