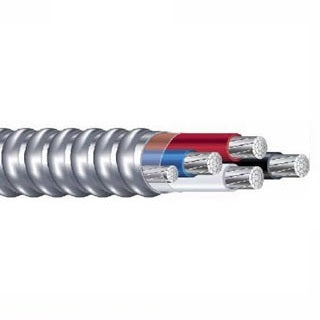

The WIRE MC-AL-1/0-4&4-STR-AL-MASTER is an aluminum metal-clad cable designed for electrical power distribution in buildings and industrial applications. It provides reliable performance while meeting code requirements for permanent wiring installations and electrical service connections.

• Rating: Suitable for 600 volt applications with excellent current-carrying capacity
• Composition: Aluminum conductor with four stranded wires for flexibility and durability, available in 1/0 gauge
• Installation: Engineered for ease of pulling and termination in conduit systems with compatible connectors
• Compliance: Manufactured to meet UL and NEC standards for safety and performance
• Applications: Ideal for feeders, branch circuits, and general purpose wiring service connections in buildings, industrial facilities, and some home electrical systems where aluminum wiring is permitted

Features

Additional Information

• Application Feeder and Service Power Distribution, Power, Lighting Circuits and Fished or Embedded in Plaster

Specifications

• Type: MC
• Voltage Rating: 600 V
• Conductor Material: Aluminum Alloy
• Conductor Size: 1/0 AWG
• Number of Conductors: 4
• Stranding: Stranded
• Armor Material: Lightweight Aluminum
• Insulation Material: THHN/THWN-2
• Ground Conductor Type: 4 AWG Bare Aluminum
• Outer Diameter: 1.402 Inch
• Temperature Rating: 90 Deg C
• Weight: 758 Lb/MFt
• Package Type: Reel
• Approval: UL 83/1569/1685, NEC
