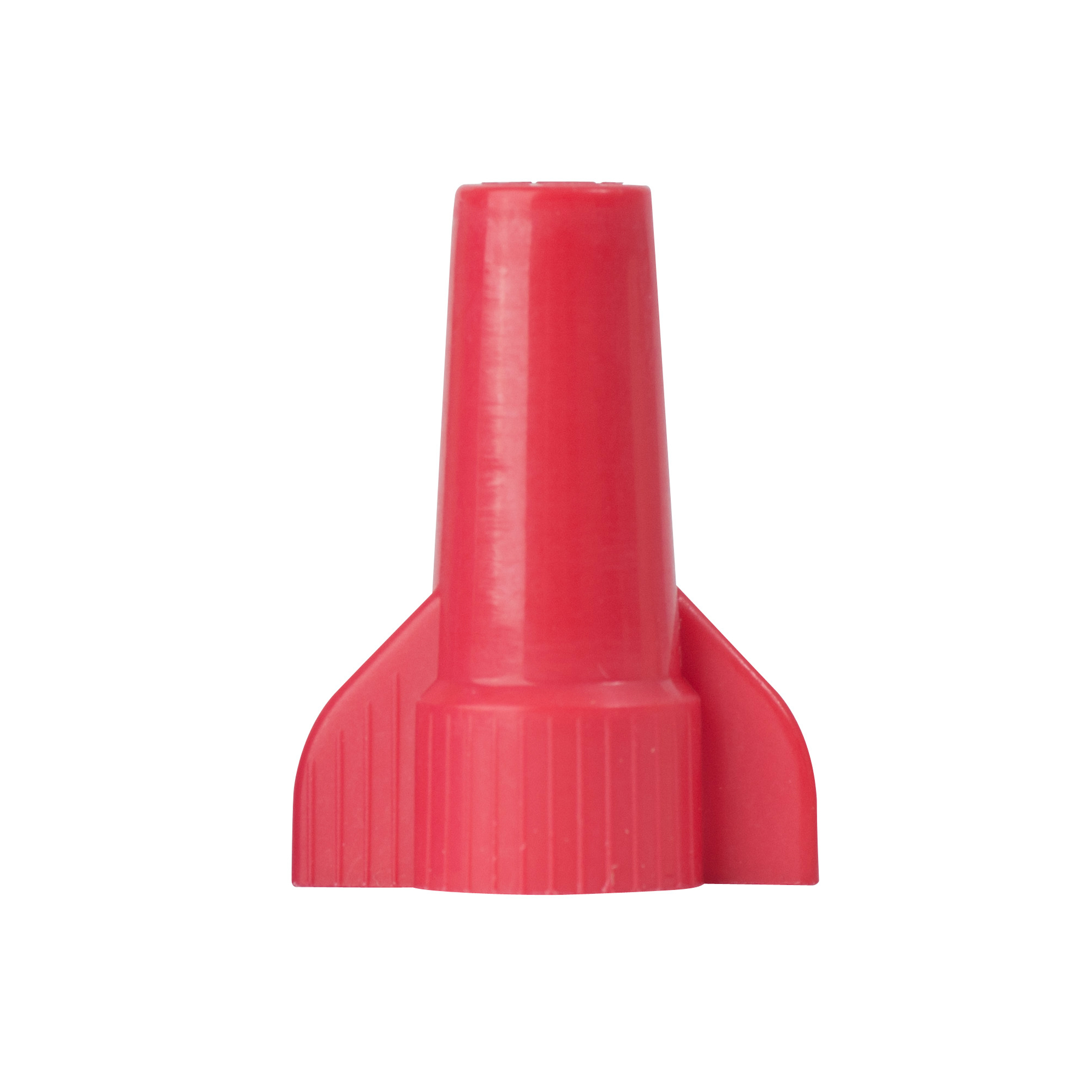

WingGard ULTRA Twist-on Wire Connector – High-Leverage Electrical Connector

The WingGard ULTRA twist-on wire connector by Gardner Bender is designed for secure and efficient electrical wire splicing, suitable for commercial and residential wiring applications. This connector provides a high-leverage, easy-on wing-type design that enhances twisting torque and reduces user strain. Ideal for electrical distributors and lighting solutions providers, it supports a wide wire range and ensures reliable connections for wire and cable installations.

Specifications

• Wire Range: #22 to #6 AWG
• Color: Red
• Pack Quantity: 100 per carton
• Product Weight: 6.4 oz
• Manufacturer Part #: 10-086

Features

• High-leverage wing-type design with knurled wings for secure grip and greater twisting leverage
• Square wire zinc-plated spring adjusts instantly to splice shape and size for long-lasting connection
• Thermoplastic shell provides strength, chemical resistance, and flame retardant properties up to 105 °C (221 °F)
• Deep skirt design prevents exposure of bare wire for enhanced safety
• Exceeds UL standards for dielectric strength, wire pullout force, and corrosion resistance

Downloads & Links

• Spec Sheet
