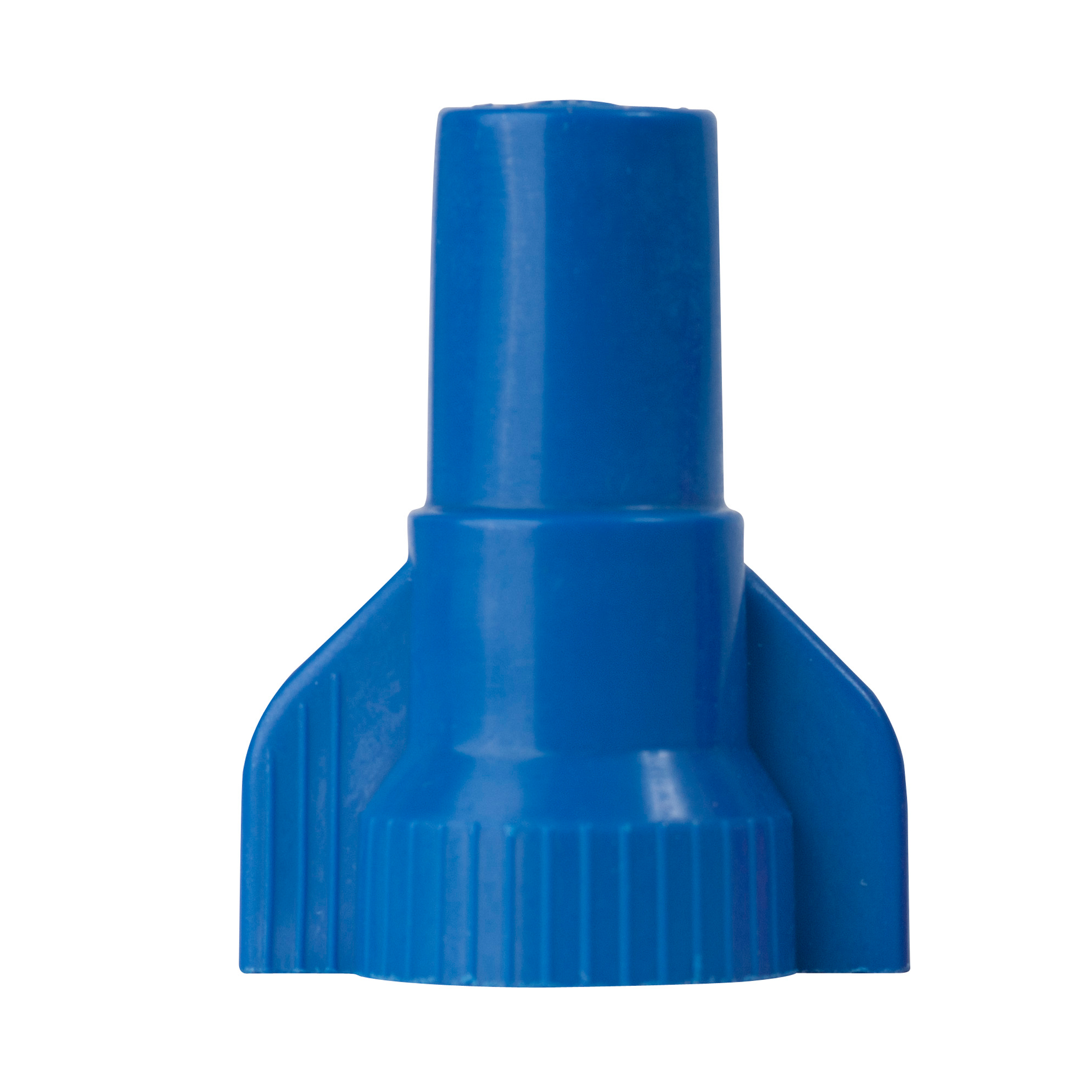

WingGard ULTRA Twist-On Wire Connector – Electrical Wire Connector

WingGard ULTRA wire connectors by Gardner Bender provide high-leverage, easy-on, wing-type twist-on connections designed for electrical distributors and professionals working with wire and cable. These connectors offer versatile application options for commercial and residential electrical wiring tasks, ensuring secure and reliable splices that meet UL standards. Suitable for use in lighting solutions, switchgear assemblies, and general electrical installations.

Specifications

• Wire Range: #14 to #6 AWG
• Color: Blue
• Pack Quantity: 100 per bag
• Dimensions: Length 1 1/2", Width 7/16", Height 3/8", Skirt length 3/4", Overall 1 1/4"
• Product Weight: 44.3 grams
• Manufacturer Part #: 13-089
• UPC: 032076130893

Features

• High-leverage wing-type design with knurled wings for improved grip and twisting torque
• Square wire spring, zinc-plated to resist corrosion, adjusts instantly to wire splice size and shape
• Thermoplastic shell provides chemical resistance and strength
• Deep skirt design prevents exposure of bare wire for enhanced safety
• Exceeds UL standards for dielectric strength, wire pullout force, and static heat resistance
• Flame-retardant properties resist heat distortion up to 105 °C (221 °F)

Downloads & Links

• Spec Sheet
