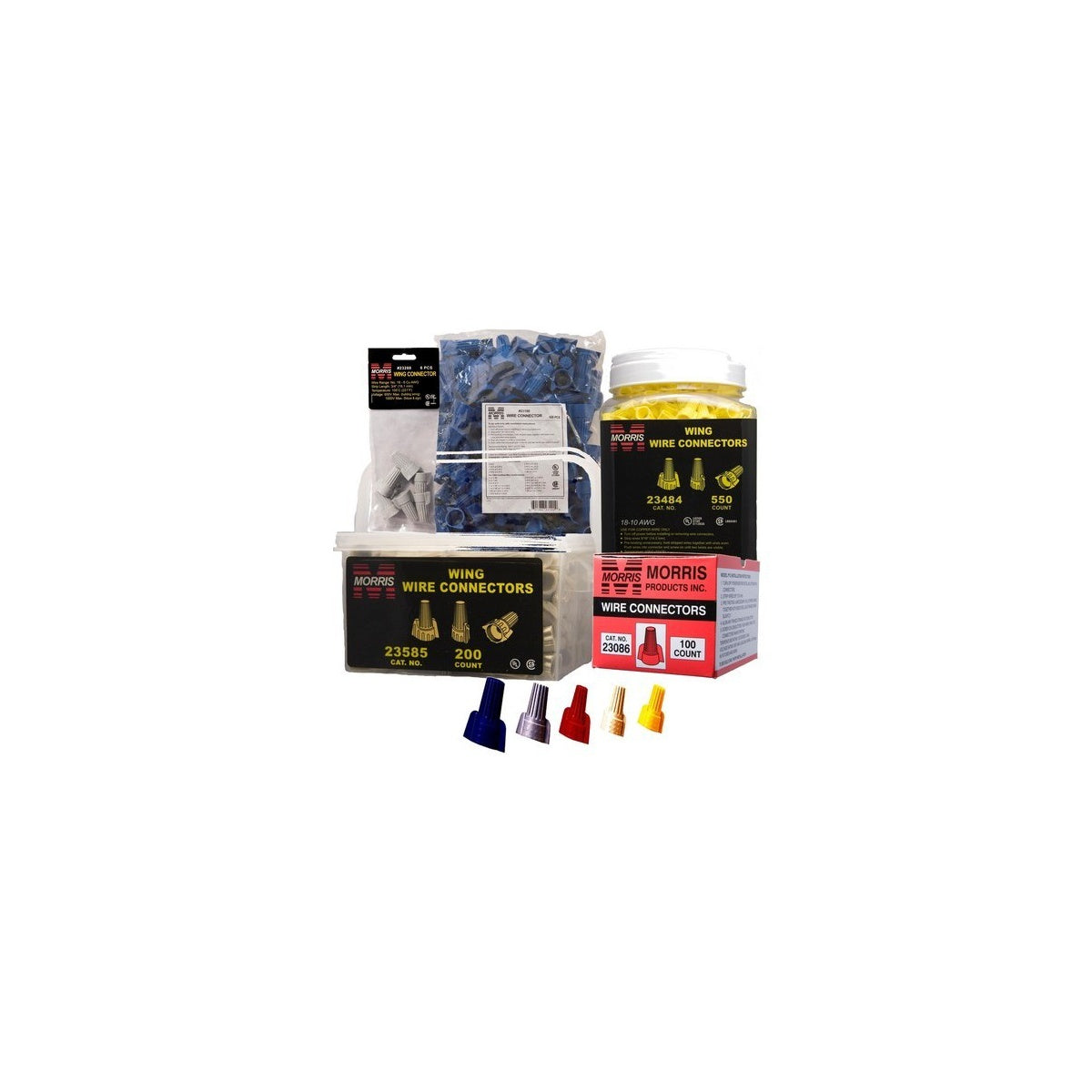

Winged Twist Connectors Gray Bagged 100 Bulk Pack - Wire Connectors

The Winged Twist Connectors Gray Bagged 100 Bulk Pack by Morris Products provides a reliable solution for electrical wiring connections. Designed for use by electrical distributors and switchgear suppliers, these connectors simplify wire splicing and ensure secure electrical connections in lighting solutions and wire and cable applications. Their winged design enables easy tightening without tools, improving installation efficiency.

Specifications

• Color: Gray
• Manufacturer Part #: 23188
• Wire Combinations: Max 3 #10 AWG, Min 3 #14 & 1 #18 AWG
• Dimensions (inches): A: 0.394, B: 0.587, C: 1.000, D: 0.394, E: 1.311
• Package Quantity: 100 connectors per bag
• Product Weight: 0.0230 lbs

Features

• Heavy duty thick wall flame retardant thermoplastic shell provides excellent electrical insulation and durability
• Swept-back wing design fits naturally into fingers for increased torque and fingertip comfort
• Live action square wire spring draws wires deep into spring for a secure grip and reliable connection
• No pre-twisting of conductors required; spring creates its own thread
• Connector bites and holds on single conductor to facilitate isolation or capping
• Compact, narrow profile reduces space usage in junction boxes
• Reusable connector threads on or off splice for fast circuit changes and additions
• Temperature rated to 221°F (105°C) maximum
• Rated 600 Volt, 1000 Volt max in lighting fixtures and signs
