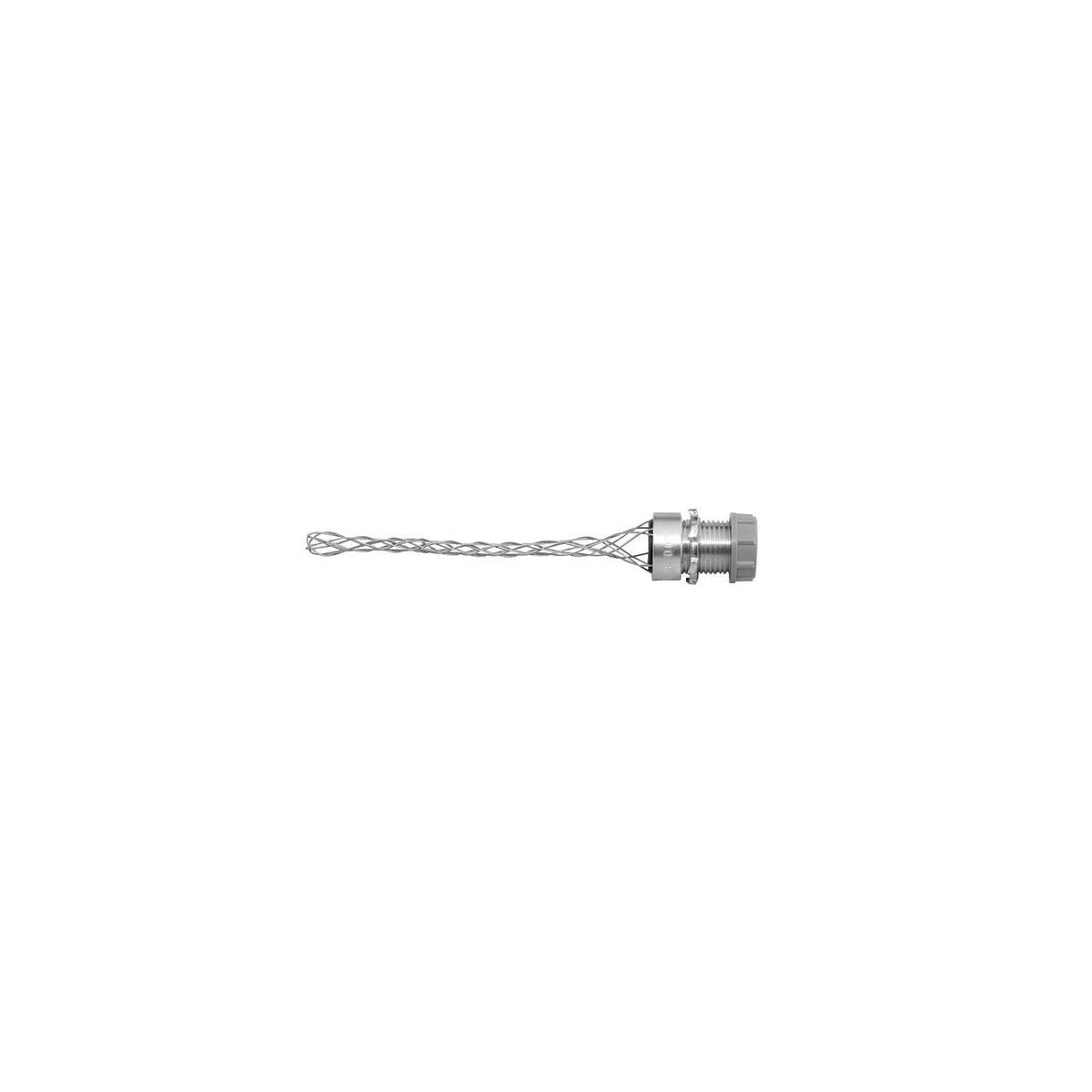

Wide Range Strain Relief Grip, insulated, 2" NPT, cable range 1.50 - 1.70 – Strain Relief Grip

The Wide Range Strain Relief Grip by Remke is designed to securely connect cords or cables to electrical enclosures, power boxes, panel boards, portable power tools, and machine tools. This insulated strain relief grip helps control cable arc-of-bend, prevents pull-out, and reduces damage caused by flexing. It is intended for indoor use in dry locations and is suitable for electrical distributors and lighting solutions requiring reliable wire and cable strain relief components.

Specifications

• Manufacturer: Remke
• Manufacturer Part #: 7303-015R
• Cable Range: 1.50 – 1.70 inches
• Fitting Thread Size: 2" NPT
• Mesh Length: 13 1/4 inches
• Material: Aluminum
• Dimensions (L x W x H): 14.625 in x 1.825 in x 14.625 in
• Product Weight: 1.7290 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Constructed with a single-weave galvanized steel mesh and aluminum fittings
• Includes a gasket providing an environmental seal against dust, filings, and foreign material
• Designed to distribute strain over the length of the grip to prevent cable damage
• Provides heavy-duty strain relief and controls cable arc-of-bend
• Insulated design suitable for indoor dry locations

Downloads & Links

• Spec Sheet
