Wide Range Strain Relief Grip, insulated, 2 1/2" NPT, cable range 1.75 - 2.00
SKU: #127789
Part: #7303-016R
UPC: 785411102306
Wide Range Strain Relief Grip, insulated, 2 1/2" NPT, cable range 1.75 - 2.00
SKU: #127789
Part: #7303-016R
UPC: 785411102306
Description

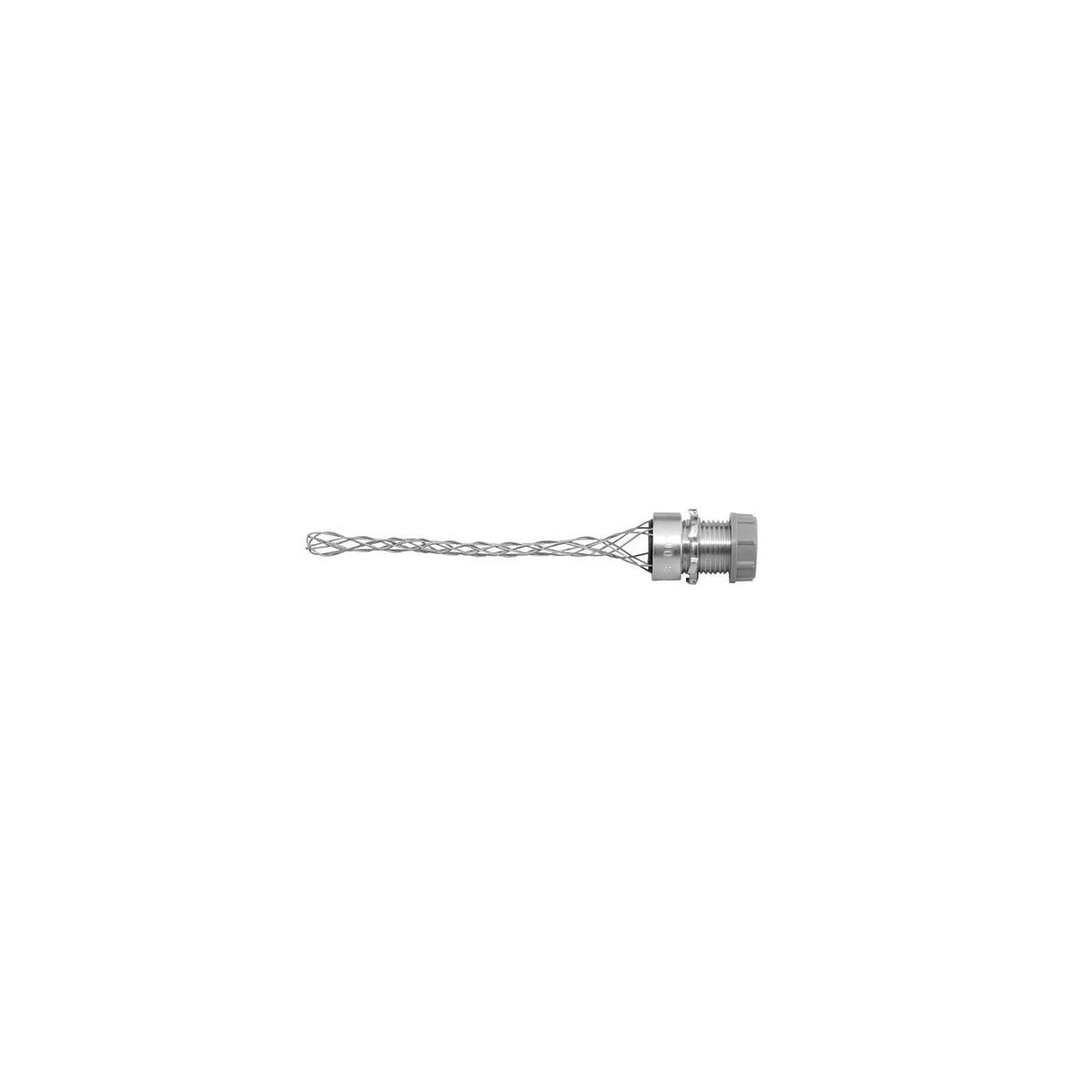

Wide Range Strain Relief Grip, insulated, 2 1/2" NPT – Wire Mesh Cable Grip
The Wide Range Strain Relief Grip is designed to connect cord or cable to electrical enclosures and equipment, providing secure strain relief and protection against cable pull-out and damage from flexing. This product is ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable management solutions. It features a single-weave galvanized steel mesh with aluminum fittings and an insulating bushing to ensure a sealed connection against dust, filings, and other contaminants.
Specifications
- Manufacturer: Remke
- Manufacturer Part #: 7303-016R
- Cable Range: 1.70 - 2.00 inches
- Fitting Thread Size: 2 1/2" NPT
- Mesh Length: 13 1/2 inches
- Material: Aluminum
- Width: 2.125 in
- Height: 15 in
- Length: 15 in
- Product Weight: 1.4120 lbs
- Country of Origin: United States
- Made in USA: Yes
- UPC: 785411102306
Features
- Single-weave galvanized steel mesh construction for durability
- Insulated bushing for enhanced protection and sealing
- Prevents cable pull-out and damage from flexing
- Controls arc of bend to reduce strain on cables
- Distributes strain over the length of the grip instead of a single point
- Aluminum fittings provide corrosion resistance
