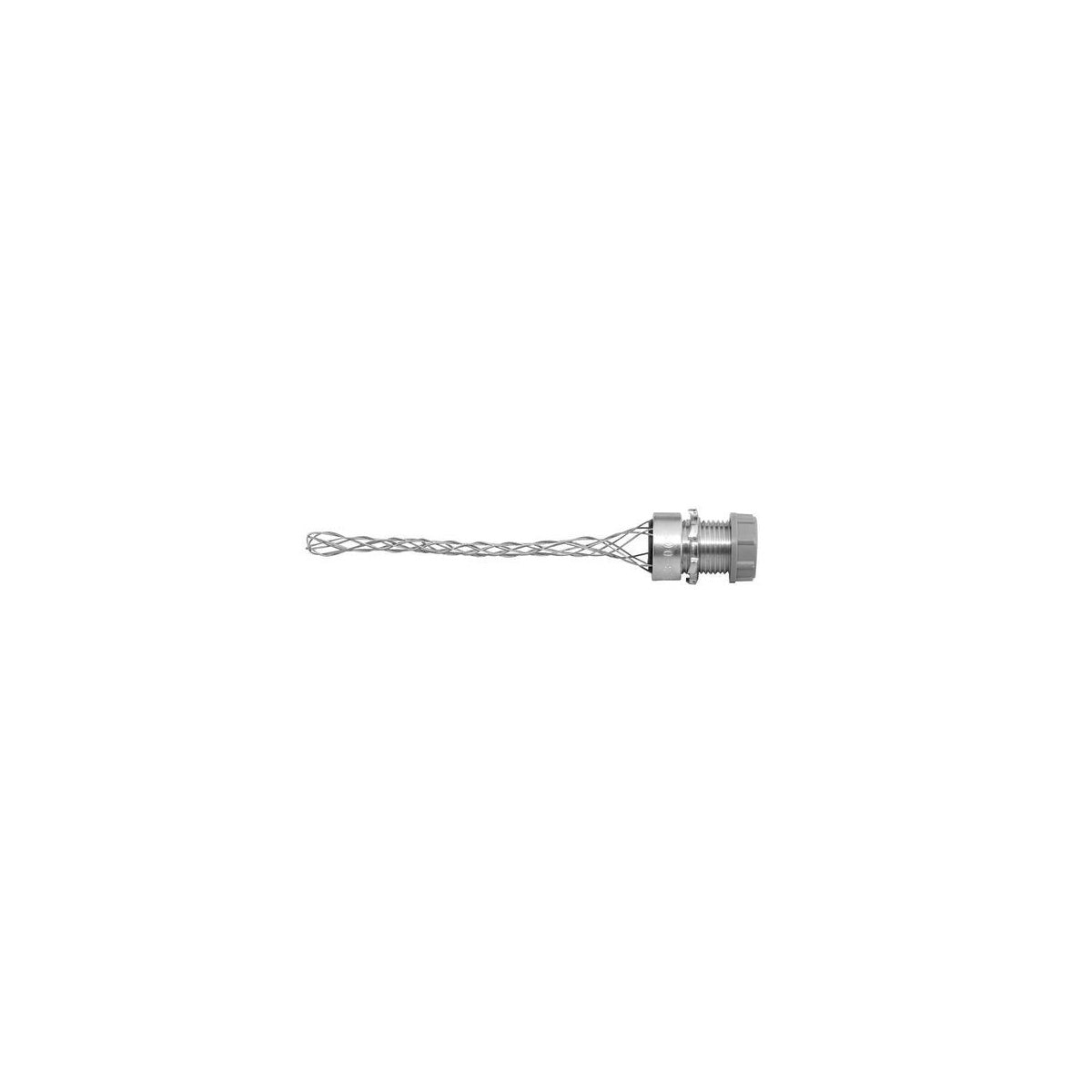

Wide Range Strain Relief Grip, insulated, 1" NPT, cable range .70 - .97 – Strain Relief Cable Grip

This Wide Range Strain Relief Grip is designed to securely connect cords or cables to electrical enclosures, power boxes, portable power tools, panel boards, and machine tools. Manufactured by Remke, it provides heavy-duty strain relief and helps control cable arc-of-bend to prevent pull-out and damage from flexing. Suitable for indoor use in dry locations, this grip distributes strain over its length rather than at a single point, ensuring cable integrity. It is an essential component for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking reliable cable management.

Specifications

• Manufacturer: Remke
• Manufacturer Part #: 7303-012R
• Material: Aluminum
• Cable Range: 0.70 – 0.97 inches
• Fitting Thread Size: 1" NPT
• Length: 8.187 in
• Width: 1.095 in
• Height: 8.187 in
• Product Weight: 0.8980 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Constructed with single-weave galvanized steel mesh for durability
• Aluminum fittings with gasket provide environmental seal against dust and foreign materials
• Designed for indoor use in dry locations
• Prevents cable pull-out and damage from flexing by controlling arc-of-bend
• Distributes strain evenly over the length of the grip

Downloads & Links

• Spec Sheet
