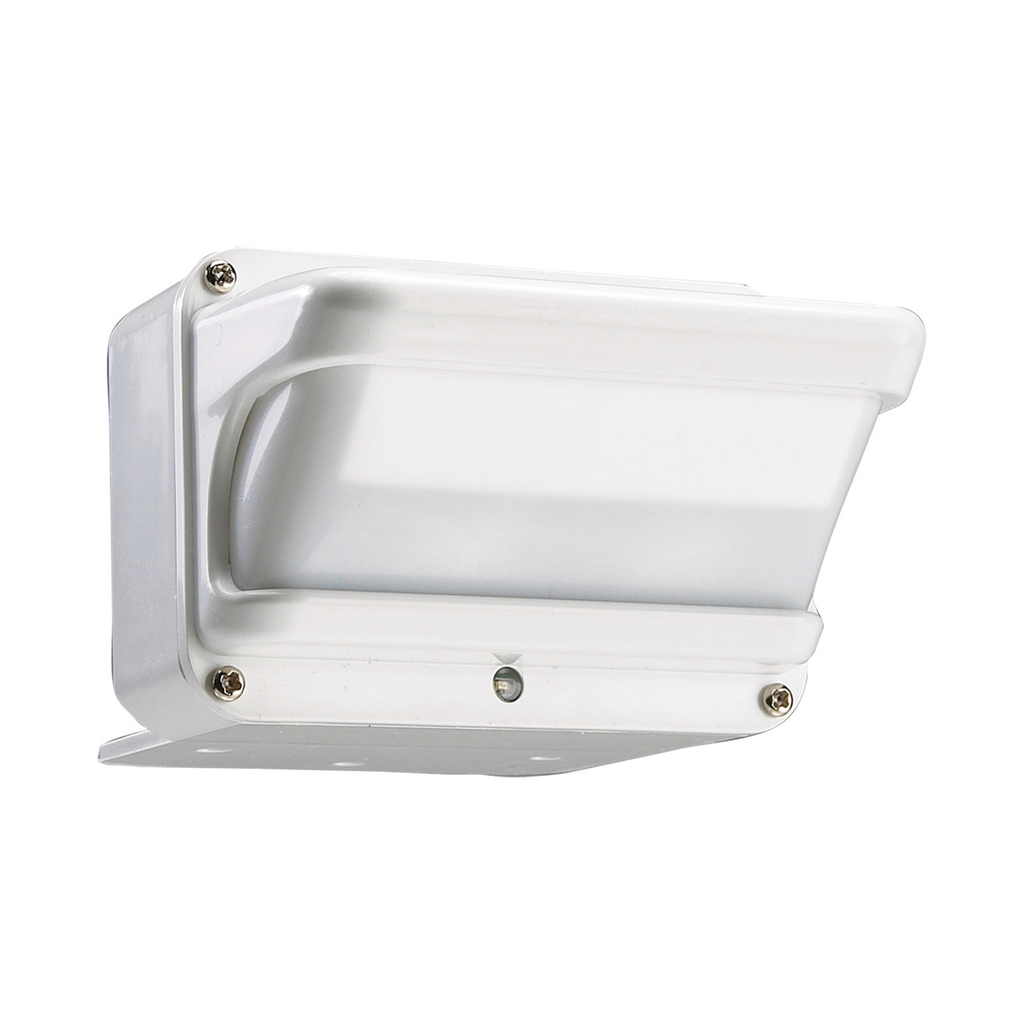

Wide Angle PIR Occupancy Sensor, 24VDC, White - Passive Infrared Lighting Control

The FS-705 Wide Angle PIR Occupancy Sensor is designed to control lighting based on occupancy using passive infrared (PIR) technology. It provides 180-degree wide-angle coverage, making it suitable for applications such as refrigeration and freezer cases, vending machines, and aisleway displays. This sensor is intended for use with a Wattstopper 24VDC Class 2 power pack and is ideal for electrical distributors and lighting solution providers focusing on wire and cable and switchgear supplier markets.

Specifications

• Operating Voltage: 24VDC
• Power Consumption: 20mA @ 24VDC
• Dimensions: 1.77” H x 2.68” W x 3.15” D (45mm x 68mm x 80mm)
• Weight: 2.11 oz (60 grams)
• Operating Temperature Range: 32°F to 131°F (0°C to 55°C)
• Storage Temperature Range: -22°F to 176°F (-30°C to 80°C)
• Detection Coverage: 180° horizontal, 70° vertical
• Detection Zones: 40, dual pyroelectric sensors
• Detection Indicator: Red LED
• Material: ABS, flame retardant
• Compliance: UL and cUL listed, RoHS compliant
• Indoor Use Only
• Country of Origin: China
• Manufacturer Part Number: FS-705-W
• Warranty: 5 years

Features

• Wide-angle occupancy detection ideal for aisleways and display cases
• Instant-on feature with initial warm-up period for reliable operation
• Adjustable time delay and PIR sensitivity settings located under removable cover
• Designed for use with Wattstopper BZ Series power packs
• Red LED occupancy indication for easy testing and troubleshooting
• Compact design for mounting on top of cabinets or refrigeration units
• Dense coverage with 40 detection zones for precise occupancy sensing
