Features

• Rugged Continuous and Seamless Die-Cast Construction Prevents Entry of Dirt, Dust and Moisture, Polyester Powder Coating is Applied for Uniform Cosmetic Coating and Weatherproof Durability
• Mounting Can be Achieved with Mounting Lugs (Provided) or by Using the Integral Mounting Knockout, Smooth, Accurately Tapped Hubs Prevent Wire Abrasion, Closure Plugs (2), Mounting Lugs (2) and Green Ground Screw Provided with Each Box
• Clear UL Marking and Volumetric Marking Cast into Each Box and Extension Ring Facilitate Electrical Inspection
• Continuous Box and Cover Compression Ensure Complete Sealing at Gasket Interface to Prevent Moisture Entry
• Lockable Cover and Cover with Integral Devices are Offered
• Mounting Hardware and Gasket Provided with Each Cover
• Locking Swivel Knuckle on Lampholders Permits Positive Lamp Positioning and Accurate Directional Aiming
• Complete Installation Instructions are Provided with Each Item
• In-Use Cover Include Patented Inserts and Comply with NEC Requirements
• Lighting Fixtures are Individually Boxed, Labeled and Bar Coded for Ease of Handling and Identification

Additional Information

• Applicable Standard NEMA FB-1/OS-1
• Includes Gasket, Mounting Hardware
• Used On Branch Circuit Wiring
• Application Wet, Damp, Dry Location

Specifications

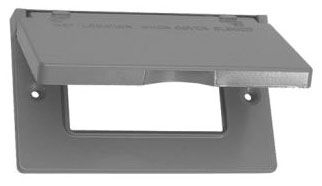

• Type: Self-Closing
• Device Opening: (1) GFCI Receptacle
• Number of Gangs: 1
• Lid Type: Single Lid
• Size: 4.56 Inch W x 2.81 Inch H
• Material: Aluminum
• Color: Gray
• Finish: Epoxy Powder Coated
• Mounting: Screw, Box
• Mounting Position: Horizontal
• Approval: UL 514D, CSA C22.2
• Series/Model: WH
