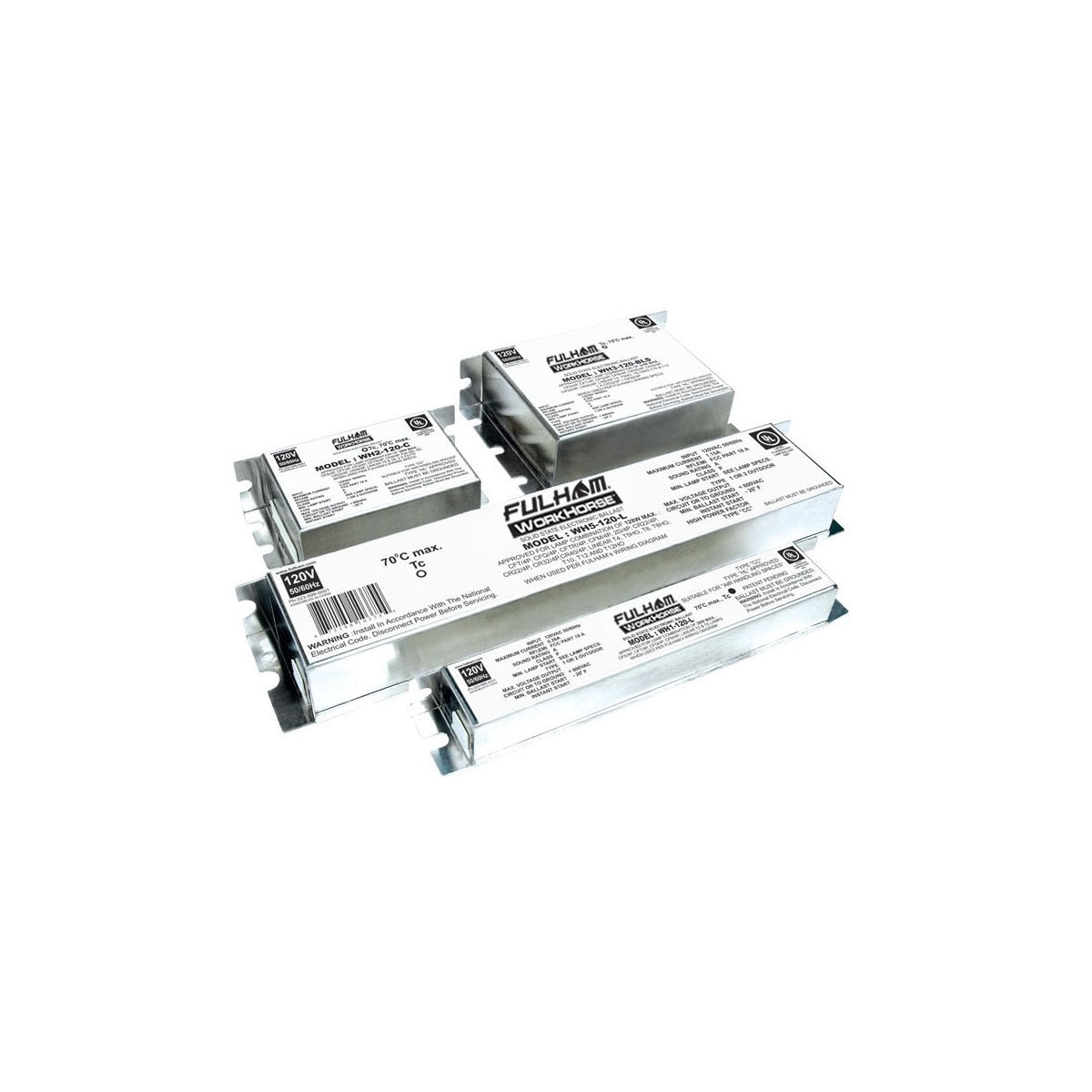

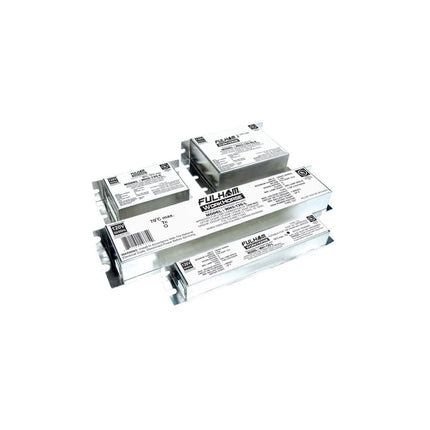

WH7-120-L, Fluorescent Electronic Ballast for Lighting Solutions

The WH7-120-L Fluorescent Electronic Ballast by Fulham is designed for commercial and residential lighting applications. It provides reliable operation for fluorescent lamps, supporting up to four lamps with a ballast factor of 1.17. This ballast is suitable for electrical distributors and switchgear suppliers seeking versatile wire and cable compatible lighting solutions.

Specifications

• Application: Commercial & Residential
• Number of Lamps: 4
• Ballast Factor: 1.17
• Frequency Rating: 50/60 Hz
• Operating Frequency: 50/60 hertz
• Product Weight: 2.2880 lbs
• Color: Aluminum Grey/ White
• Dimensions (L x W x H): 19.25 IN x 1.72 IN x 1 IN
• Minimum Starting Temperature: -30¬∞C (-20¬∞F)
• Manufacturer: Fulham
• Manufacturer Part #: WH7-120-L
• UPC: 872180100845

Features

• Designed for maximum versatility, compatible with dozens of lamp types and hundreds of combinations
• Enables contractors and electricians to handle various lighting situations on-site without additional equipment
• UL certified for safety and reliability
• Ballast case temperature rating up to 70¬∞C
