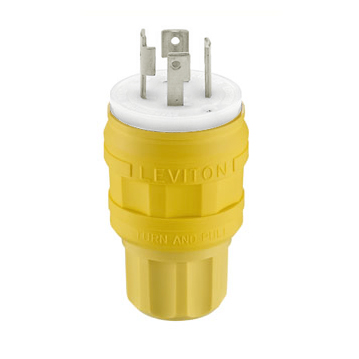

Wetguard Watertight Locking Plug - Industrial Grade Electrical Distributor Solution

The Wetguard Watertight Locking Plug by Leviton is a 30 Amp, 250 Volt, 3-Phase, NEMA L15-30P locking plug designed for demanding industrial environments requiring secure and corrosion-resistant electrical connections. Engineered for use in wet locations such as outdoor weather exposure or indoor washdown, this device supports applications in agriculture, food and beverage processing, water treatment, and construction. It is ideal for electrical distributors and switchgear suppliers seeking reliable, watertight power connections that withstand harsh conditions.

Specifications

• Amperage: 30 amperes
• Voltage: 250 Volt, 3-Phase
• NEMA Configuration: WD-6 (NEMA L15-30P)
• Number of Poles: 3
• Number of Wires: 4
• Device Type: Locking Plug
• Body Material: Santoprene TPV
• Color: Yellow
• Grounding: Grounding
• Dielectric Withstand Voltage: 2000 volts
• Operating Temperature: -40 °C
• Flammability Class: Rated V-2 per UL 94
• Product Weight: 5.93 lbs
• Country of Origin: Mexico
• Manufacturer: Leviton
• Manufacturer Part Number: 28W75

Features

• Watertight and dust-tight design with patented multi-point sealing system for superior protection against dirt and moisture
• Corrosion-resistant electroless nickel-coated brass blades, contacts, terminal screws, and wiring clamps
• Rugged Santoprene TPV body and nylon wiring module provide resistance to water, acids, alkalies, automotive and industrial lubricants, and solvents
• Patented compression nut strain relief system ensures integrity of electrical connection and watertight seal
• High-performance elastomer parts offer UV stability and resist fungal growth
• IP69K rated for high-pressure, high-temperature washdown environments
• Clear back cover on wiring module allows easy inspection of wired terminals
• Triple drive screws (Phillips, Slotted, Robertson) facilitate proper tightening
• Deep-fluted finger grips provide firm grip when tightening nut
• Product ID ratings and NEMA configuration permanently marked on device
