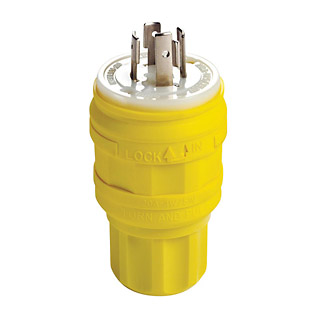

Wetguard Watertight Locking Plug - Industrial Grade Locking Plug

The Wetguard Watertight Locking Plug by Leviton is a 20 Amp, 125/250 Volt locking plug designed for demanding industrial applications. Engineered for secure electrical connections in wet or harsh environments, this NEMA L14-20P rated device is ideal for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers. It features a patented multi-point sealing system that provides superior ingress protection against water, dirt, and debris, ensuring reliable performance in wet locations such as outdoor weather or indoor washdown areas.

Specifications

• Amperage: 20 amperes
• Voltage: 125/250 Volt
• NEMA Configuration: WD-6 (NEMA L14-20P)
• Number of Poles: 3
• Number of Wires: 4
• Device Type: Locking Plug
• Body Material: EPTR Rubber
• Color: Yellow
• Grounding: Grounding
• Dielectric Voltage Withstand: 2000 volts
• Operating Temperature: -40 °C
• Flammability Class: Rated V-2 per UL 94
• Product Weight: 5.2 lbs
• Country of Origin: Mexico
• Manufacturer Part Number: 26W74

Features

• Patented multi-point sealing system for watertight and dust-tight protection
• Corrosion-resistant electroless nickel-coated brass blades, contacts, terminal screws, and wiring clamps
• Non-magnetic stainless steel assembly screws for enhanced durability
• Body constructed of durable EPTR rubber for resistance to water, acids, alkalies, lubricants, and solvents
• Compression nut strain relief system ensures integrity of electrical connection and watertight seal
• Bright yellow color for high visibility in industrial environments
• Rated for use in wetguard applications requiring rugged, industrial-grade locking plugs
