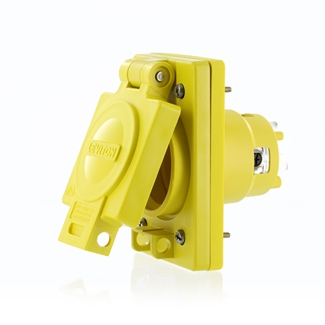

Wetguard Watertight Locking Outlet - Industrial Grade Locking Outlet

The Wetguard Watertight Locking Outlet is a 30 Amp, 250 Volt, 3-phase locking single outlet designed for industrial applications requiring durable and reliable electrical connections. This grounding outlet is suitable for use in harsh environments, providing watertight protection and compliance with NEMA WD-6 standards. It is an ideal component for electrical distributors and switchgear suppliers focusing on robust lighting solutions and wire and cable installations.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: 99W75-S
• Device Type: Locking Outlet
• Amperage: 30 amperes
• Voltage: 250 Volt
• Number of Poles: 3
• Number of Wires: 4
• NEMA Configuration: WD-6
• Color: Yellow
• Grounding: Grounding
• Dielectric Withstand: 2000 volts
• Operating Temperature: -40 degrees Celsius
• Flammability Class: Rated V-2 Per UL 94
• Product Weight: 4.4 lbs
• Country of Origin: Mexico

Features

• Industrial grade construction designed for wet and harsh environments
• Watertight Wetguard¬Æ cover ensures protection against moisture and contaminants
• Pre-assembled mounting cup simplifies installation without removal for wiring
• Compatible with Leviton Wetguard¬Æ boxes for IP66/NEMA Type 4, 4X, and 12 suitability
• Stranded copper wire only for wiring, with clear wiring polarity markings for safety
• Durable yellow color for high visibility in industrial settings

Downloads & Links

• Spec Sheet
• PK 93737 10 00 0A
• Wetguard Brochure Q 653I
• CATSTD 99W74 00S D01
