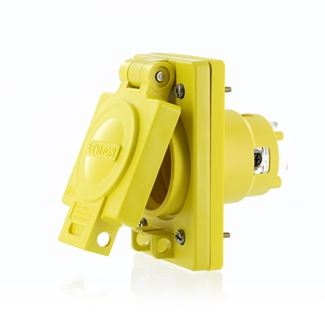

Wetguard Watertight Locking Inlet - Industrial Grade Electrical Distributor

The Wetguard Watertight Locking Inlet is a 30 Amp, 250 Volt, NEMA L6-30 rated device designed for secure and durable electrical connections in demanding industrial environments. This locking inlet features a 2-pole, 3-wire grounding configuration with an IP66 rated cover, making it suitable for wet and corrosive locations. It is ideal for use by electrical distributors and switchgear suppliers requiring reliable, corrosion-resistant components for lighting solutions, wire and cable installations, and industrial power distribution.

Specifications

• Amperage: 30 amperes
• Voltage: 250 volts
• NEMA Configuration: WD-6 (L6-30)
• Device Type: Locking Inlet
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Grounding
• Dielectric Voltage Withstand: 2000 volts
• Operating Temperature: -40 °C to 60 °C
• Color: Yellow
• Flammability Class: Rated V-2 per UL 94
• Country of Origin: Mexico
• Product Weight: 4.0 lbs
• Manufacturer Part #: 68W48
• Standards: NEMA WD-6, ANSI C-73, UL 498, CSA C22.2 No. 42, NOM #057

Features

• IP66 rated cover provides watertight protection against dirt and moisture
• Corrosion-resistant electroless nickel-coated brass blades, contacts, terminal screws, and wiring clamps
• Rugged nylon body and patented compression nut strain relief system ensure durability and secure cord retention
• Designed for harsh industrial environments exposed to water, acids, alkalies, lubricants, and solvents
• Meets electrical distributor requirements for grounding and safety
• Compatible with Wetguard system components for flexible industrial power distribution
