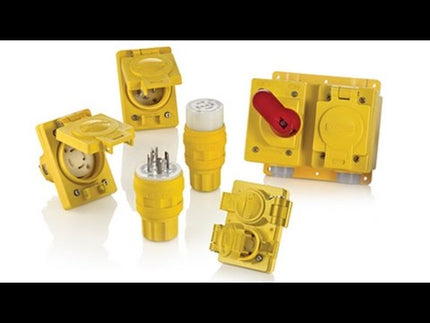

Wetguard Watertight Locking Duplex Outlets – Industrial Grade Locking Outlet

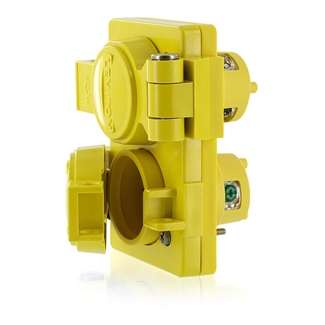

The Wetguard Watertight Locking Duplex Outlet by Leviton is a 15 Amp, 125 Volt, NEMA L5-15 rated device designed for demanding industrial environments. This grounding, 2-pole, 3-wire locking outlet provides secure and reliable electrical connections in wet and corrosive conditions. Ideal for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers, it ensures safety and durability in outdoor weather, indoor washdown, agriculture, food and beverage processing, water treatment, and construction sectors.

Specifications

• Amperage: 15 amperes
• Voltage: 125 volts
• NEMA Configuration: L5-15, WD-6
• Device Type: Locking Outlet
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Grounding
• Dielectric Voltage Withstand: 2000 volts
• Operating Temperature: -40 ¬∞C
• Flammability Class: Rated V-2 per UL 94
• Product Weight: 4.6 lbs
• Country of Origin: Mexico

Features

• Industrial grade construction with corrosion-resistant electroless nickel-coated brass blades, contacts, terminal screws, and wiring clamps
• Patented multi-point sealing system providing watertight and dust-tight protection (IEC IP66, NEMA 4, 4X, 12 rated)
• Rugged, impact and chemical-resistant TPV and nylon body withstand water, acids, alkalies, automotive and industrial solvents
• Patented compression nut strain relief system prevents cord slippage and maintains watertight seal
• Designed for use in harsh environments including agriculture, food and beverage processing, water treatment, and construction
• Lifetime warranty offered by Leviton
• Yellow color for high visibility in industrial settings

Downloads & Links

• Wetguard Brochure Q-653I
• PK-93737-10-00-0A
