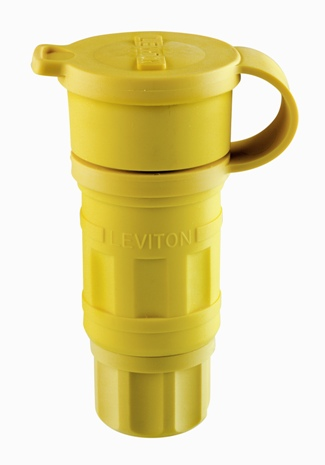

Wetguard Watertight Locking Connector – Industrial Grade Locking Connector

The Wetguard Watertight Locking Connector is a 20 Amp, 125/250 Volt, NEMA L14-20R rated device designed for secure, reliable electrical connections in harsh, wet, and industrial environments. Manufactured by Leviton, it is ideal for applications requiring robust protection against moisture, dirt, and corrosion, making it suitable for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers servicing demanding industrial settings.

Specifications

• Amperage: 20 amperes
• Voltage Rating: 125/250 Volt
• NEMA Configuration: WD-6 (L14-20R)
• Number of Poles: 3
• Number of Wires: 4
• Body Material: EPTR Rubber
• Color: Yellow
• Grounding: Grounding
• Dielectric Voltage Withstand: 2000 volts
• Operating Temperature: -40 °C
• Flammability Class: Rated V-2 per UL 94
• Product Weight: 7.12 lbs
• Country of Origin: Mexico

Features

• Industrial grade, watertight locking connector designed for wet locations and harsh environments
• Patented multi-point sealing system providing an impenetrable barrier against dirt and moisture
• Corrosion-resistant electroless nickel-coated brass blades, contacts, terminal screws, and wiring clamps
• Durable EPTR rubber body with UV stability and resistance to water, acids, alkalies, oils, solvents, and fungal growth
• Innovative compression nut strain relief system ensuring watertight seal and preventing cord slippage for multiple cord diameters
• Clear back cover on wiring module for easy inspection of wired terminals
• Non-magnetic stainless steel assembly screws for enhanced corrosion resistance
• Compatible with Wetguard caps to achieve IP69K rating for high-pressure, high-temperature washdown applications
• Product ID ratings and NEMA configuration permanently marked on device

Downloads & Links

• CATSTD-27W74-00X-M01
• Wetguard Brochure Q-653I
• CATSTD-27W74-00X-D01
