Wetguard Watertight Locking Connector – Industrial Grade Electrical Connector

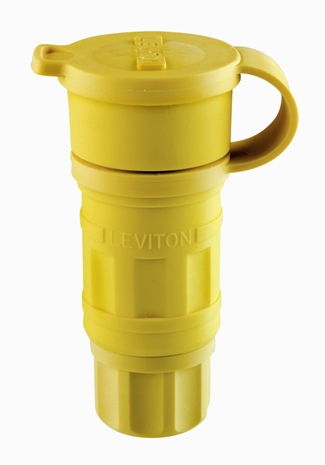

The Wetguard Watertight Locking Connector by Leviton is a 20 Amp, 277 Volt, NEMA L7-20R rated, 2-pole, 3-wire locking connector designed for harsh industrial environments. It provides secure, corrosion-resistant electrical connections suitable for wet and corrosive conditions, making it ideal for electrical distributors and lighting solutions requiring durable wire and cable connections. This grounding device features an EPTR rubber body for enhanced durability and watertight performance, ensuring reliable operation in wet locations such as outdoor weather or indoor washdown areas.

Specifications

• Amperage: 20 amperes
• Voltage: 277 volts
• NEMA Configuration: WD-6 (L7-20R)
• Number of Poles: 2
• Number of Wires: 3
• Device Type: Locking Connector
• Body Material: EPTR Rubber
• Color: Yellow
• Grounding: Grounding
• Dielectric Withstand Voltage: 2000 volts
• Flammability Rating: Rated V-2 per UL 94
• Operating Temperature: -40 degrees Celsius to 60 degrees Celsius
• Product Weight: 7.9 lbs
• Country of Origin: Mexico
• Manufacturer: Leviton
• Manufacturer Part Number: 27W49

Features

• Patented multi-point sealing system for superior watertight and dust-tight protection (IEC IP66, IP67, IP69K certified when mated with caps)
• Corrosion-resistant electroless nickel-coated brass blades, contacts, terminal screws, and wiring clamps
• Non-magnetic stainless steel assembly screws
• High-performance elastomer parts resist water, acids, alkalies, grease, oil, and solvents
• Husk molded to bondable nylon body for enhanced sealing capability and physical abuse resistance
• Innovative compression nut strain relief system prevents cord slippage and maintains watertight seal
• Deep-fluted finger grips for firm tightening
• Exclusive “tongue and groove” design for superior ingress protection from water, dirt, and debris
• Clear back cover on wiring module allows easy inspection of wired terminals
• Meets NEMA WD-6, ANSI C-73, UL 498, CSA C22.2 No. 42, and NOM #057 standards
• Compatible with Leviton Wetguard system components for industrial and commercial applications
