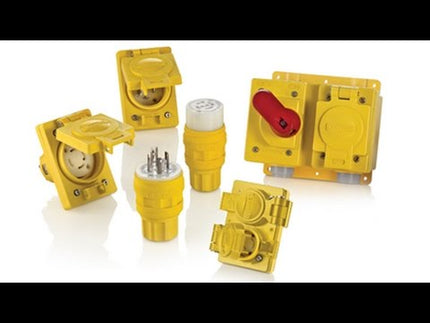

Features

• BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
• WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
• UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
• HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
• THE BRAND YOU TRUST- Backed by a lifetime warranty

NEMA

• L5-20R

Color Variations

• Black

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NEMA: WD-6
• NOM: 057
• UL: 498
• Warranty: Limited Lifetime Warranty Warranty

Mechanical Specifications

• Amperage: 20 A
• Cord Range: 0.375 to 0.875
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Grounding
• Pole: 2
• Product ID: Ratings and NEMA I.D. permanently marked on device
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Terminal Accom.: #16 to #10
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Torque Range: 12-14 in-lbs
• Voltage: 125 VAC
• Wire: 3

Material Specifications

• Assembly Screws: Stainless Steel 300
• Blades/Contacts: Nickel-Plated Brass
• Body Interior: Nylon
• Body Material: EPTR Rubber
• Bushing: Santoprene TPV
• Clamps: Electroless Nickel-coated Brass
• Compression Nut, Strain Relief: Nylon
• Terminal Screws: Electroless Nickel-coated Brass
• Wire Module: Nylon

Product Features

• Brand: Wetguard
• Color: Yellow

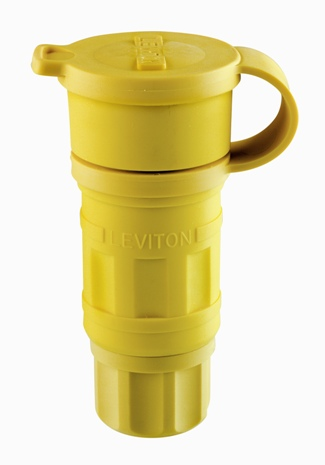

• Device Type: Locking Connector
• Standards and Certifications: UL/CSA

Environmental Specifications

• Environment: Wet
• Flammability: Rated V-2 per UL 94
• IP Rating: IP66, IP67, IP69K
• Operating Temperature: -40°C to 60°C
