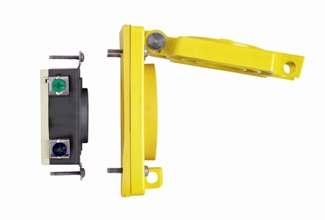

Features

• BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
• ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
• MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
• DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion

NEMA

• L16-20R

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NEMA: WD-6
• NOM: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399

Product Features

• Amperage: 20 A
• Brand: Wetguard
• Color: Yellow
• Device Type: Locking Outlet
• Grounding: Grounding
• Pole: 3
• Standards and Certifications: UL/CSA
• Strap Material: Nickel-Plated Brass
• Termination: Back
• Voltage: 480 VAC
• Warranty: Limited Lifetime Warranty
• Wire: 4

AC Horsepower Ratings

• At Rated Voltage: 5 HP

Material Specifications

• Base Material: Nylon
• Face Material: Nylon
• Grounding Screw: Nickel-Plated Brass 8-32
• Line Contacts: Nickel-Plated Brass .040 Thick
• Terminal Screws: Nickel-Plated Brass 10-32
• Yoke: Nickel-Plated Brass .050 Thick

Electrical Specifications

• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Phase: 3-Phase
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current

Environmental Specifications

• Environment: Wet
• Flammability: Rated V-0 per UL 94
• Operating Temperature: -40°C to 60°C

Mechanical Specifications

• Product ID: Ratings and NEMA I.D. permanently marked on device
• Terminal Accom.: 14-8 AWG
• Terminal ID: Brass-Hot, Green-Ground, White-Neutral
