WB3600C, Circuit Breaker Service Entrance Module
SKU: #19465
Part: #WB3600C
UPC: 783643967427
WB3600C, Circuit Breaker Service Entrance Module
SKU: #19465
Part: #WB3600C
UPC: 783643967427
Description
WB3600C, Circuit Breaker Service Entrance Module – Circuit Breaker

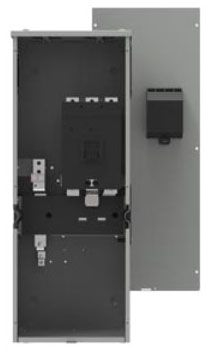

The WB3600C is a Siemens circuit breaker service entrance module designed for 3-phase, 4-wire systems with a maximum voltage rating of 240V AC. It supports a current rating of 600 amperes and is suitable for use in electrical distribution as service equipment in garden-style, meter rise, and high-rise applications. This module is ideal for electrical distributors and switchgear suppliers requiring reliable main circuit breaker solutions for wire and cable installations.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: WB3600C
- Current Rating: 600 amperes
- Voltage Rating: 240V AC max
- Phase and Wire: 3-phase, 4-wire
- Interrupt Rating: 65k AIC
- Breaker Type: LXD6 frame, 3-pole
- Enclosure Rating: NEMA Type 3R
- Service Feed: Overhead/Underground (OH/UG)
- Dimensions (HxWxD): 39.19 x 15.20 x 11.03 inches
- Weight: 99.5 lbs
- UL Certification: UL-67
- Factory Installed Lugs: Yes
Features
- Thermal magnetic circuit breaker for reliable protection
- Factory installed 600A 3-pole LXD6 frame breaker (LXD63B600)
- Combination overhead and underground service feed capability
- Suitable for garden-style, meter rise, and high-rise installations
- NEMA 3R rated enclosure for outdoor use
- UL listed for service equipment applications
