Description

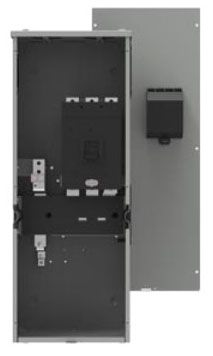

WB3400C Circuit Breaker Service Entrance Module – Electrical Distributor Solutions
The WB3400C by Siemens is a 400-ampere circuit breaker service entrance module designed for three-phase, 4-wire systems rated up to 240V AC. It serves as a reliable component for electrical distributors and switchgear suppliers, providing service equipment functionality with overhead and underground feed capabilities. This module is suitable for applications requiring robust electrical protection in residential or commercial settings such as garden-style, meter rise, and high-rise installations.
Specifications
- Manufacturer: Siemens
- Model Number: WB3400C
- Current Rating: 400 amperes
- Voltage Rating: 240V AC max, 3-phase, 4-wire SN system
- Interrupting Rating: 65kAIC
- Breaker Type: JXD6 3-pole frame breaker (JXD63B400 included)
- Dimensions (H x W x D): 39.19" x 15.20" x 11.03"
- Service Feed: Overhead/Underground (OH/UG)
- Enclosure Rating: NEMA Type 3R
- UL Certification: UL-67
- Product Weight: 97.8 lbs
- Factory Installed Lugs
Features
- Thermal magnetic circuit breaker designed for service entrance modules
- Suitable for use as service equipment with specific wiring conditions
- NEMA 3R rated enclosure for outdoor applications
- Compatible with overhead and underground feed options
- Factory installed compression lugs for secure line-side connections
- Includes externally accessible breaker handle with padlock capability (per general WB series features)
