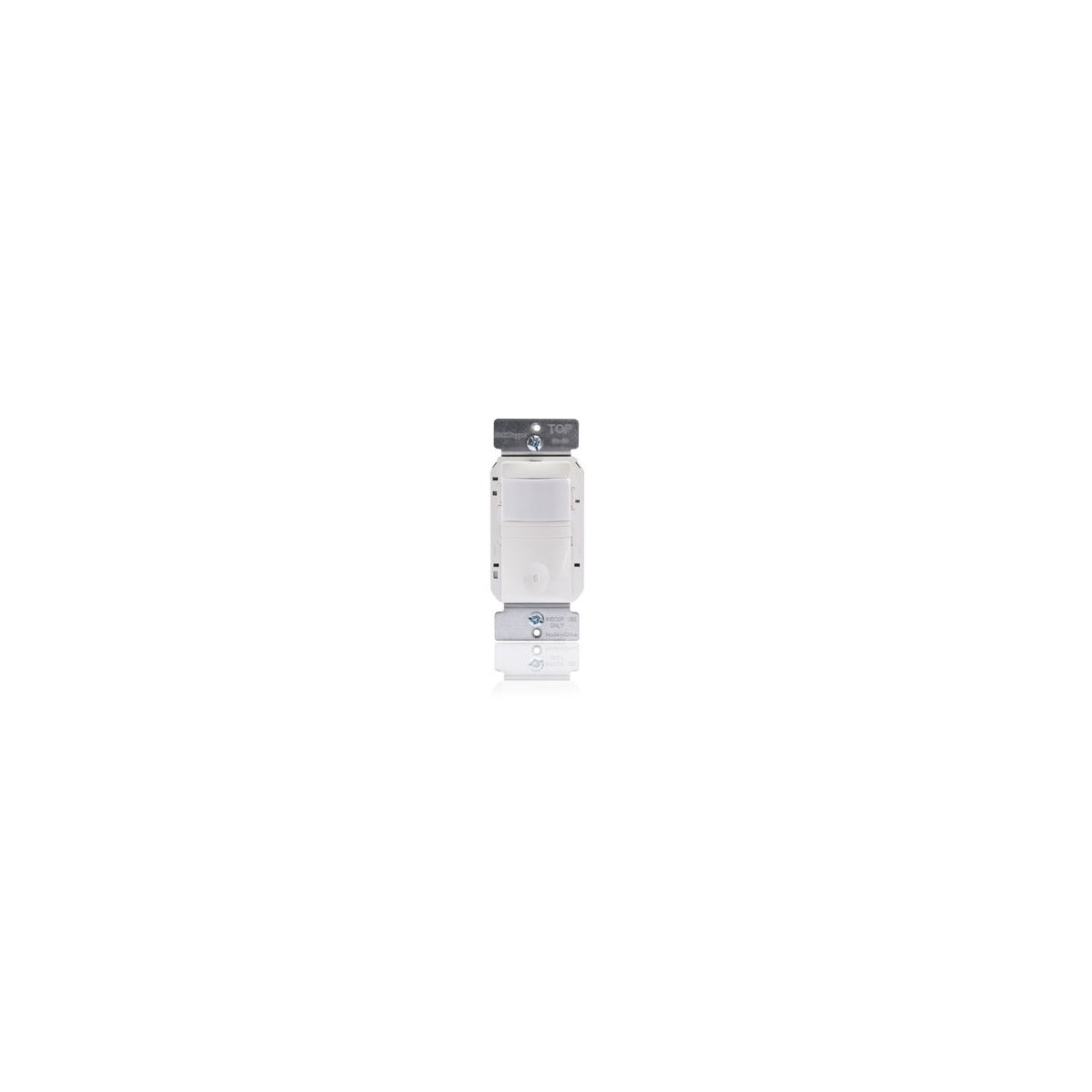

WATTSTOPPER CS-50-I Residential PIR Vacancy Sensor 2-Wire Ivory

The WATTSTOPPER CS-50-I is a passive infrared (PIR) vacancy sensor designed for single-pole lighting control applications. It provides automatic shutoff by detecting human motion and turning lights or fan motors off when a space is vacant. Engineered to comply with California Title 24-2013 energy code, this sensor is ideal for residential and light commercial environments where an unobstructed line of sight to the room is required. It operates without the need for a neutral wire, making it suitable for retrofit installations. The device is compatible with various lighting types and fan motors, offering energy-efficient lighting control for electrical distributors and lighting solutions providers.

Specifications

• Voltage: 120VAC, 60Hz
• Load Rating: 0-600W incandescent, LED, fluorescent, CFL, MLV, ELV or 1/6 hp motor
• Coverage: 180¬∞ field of view, 600 square feet (56 m¬≤)
• Operating Temperature: 32¬∞ to 131¬∞F (0¬∞ to 55¬∞C)
• Humidity: 95% RH, non-condensing
• Storage Temperature: 5¬∞F to 158¬∞F (-15¬∞C to 70¬∞C)
• Time Delay: Adjustable from 30 seconds to 30 minutes
• Dimensions: 2.67‚Äù x 1.73‚Äù x 1.77‚Äù (68mm x 44mm x 45mm)
• Country of Origin: China
• Manufacturer Part #: CS50I

Features

• Manual-on, automatic-off control with adjustable time delay
• PIR technology detects motion to control lighting or fan motors
• LED status indicator blinks upon motion detection (can be disabled)
• Two-wire sensor design requiring no neutral connection
• Relay-based switching with no current leakage in off mode for safety
• Low-profile styling compatible with decorator wall plates
• Complies with California Title 24 energy efficiency standards
• Suitable for indoor use only
