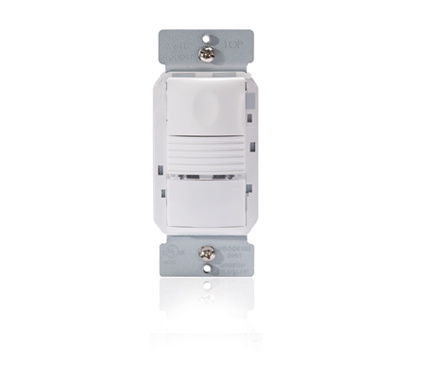

Wattstopper® Passive Infrared DIMMR Wall Switch U-Sensor, 120/277V, Gray - Occupancy Sensor

The Wattstopper® PW-101D passive infrared (PIR) dimmable wall switch occupancy sensor is designed for automated lighting control in small, enclosed spaces such as offices and conference rooms. It detects occupancy using advanced PIR technology to switch lighting ON and OFF, providing energy savings and convenience for electrical distributors and lighting solutions providers. The device replaces existing wall switches, fits a single gang junction box, and requires a neutral connection. It supports dimming control from 10% to full output and is compatible with various lighting types including incandescent, MLV, ELV, and two-wire fluorescent ballasts.

Specifications

• Voltage: 120 VAC; 50/60 Hz @ 120 VAC, 0-700 W; @ 277 VAC
• Load Type: Incandescent, MLV, ELV, cold cathode, or two-wire fluorescent ballast
• Coverage: Major motion 35’ x 30’, Minor motion 20’ x 15’
• Fade Rates: Ramp on 1.5 seconds; fade off 5 seconds
• Sensitivity Adjustment: PIR (high/low)
• Time Delays: 5, 10, 15, 20, 25, or 30 minutes, walk-through, test mode
• Dimensions: 2.73” x 1.76” x 1.83” (69.3mm x 44.7mm x 46.5mm) L x W x D
• UL and cUL Listed
• Five Year Warranty
• Color: Gray
• Manufacturer Part #: PW101DG
• Country of Origin: China

Features

• High sensitivity detection for small and large movements
• Detection Signature Processing eliminates false triggers and provides immunity to RFI and EMI
• Zero-crossing relay for extended relay life
• Vandal-resistant lens with precise coverage and durability
• Selectable Manual-ON or Auto-ON operation modes
• Walk-through mode automatically turns lights off three minutes after initial occupancy if no motion is detected
• Test mode for quick and easy adjustments
• Selectable audible and visual alerts for impending shutoff
• Preset ramp and fade times with factory preset dimming level at 85%
• LED occupancy indicator
• Optional light level sensing with simple setup
• Service mode allows operation as a service switch in case of failure
• Compatible with decorator wall plates
• BAA/TAA-compliant models available
