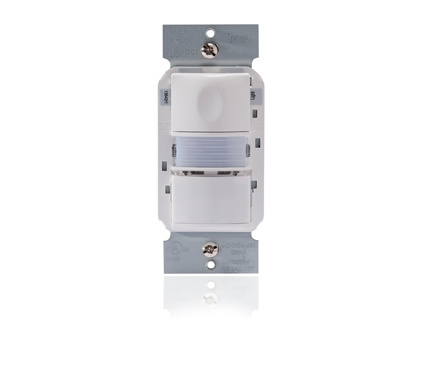

WATTSTOPPER PW-103N-G PIR Multi-Way Wall Switch Sensor with Nightlight

The WATTSTOPPER PW-103N-G is a passive infrared (PIR) multi-way wall switch occupancy sensor designed for automated lighting control in spaces with multiple doorways or switch locations. It replaces existing wall switches and fits within a single gang junction box. The sensor detects occupancy using advanced PIR technology to turn lights ON and OFF based on presence, helping electrical distributors and lighting solutions providers deliver energy-efficient control. The built-in LED nightlight feature offers selectable colors and intensities, enhancing usability in low-light environments. It is suitable for applications such as private offices, conference rooms, restrooms, and hotel guest bathrooms.

Specifications

• Voltage: 120/277 VAC; 50/60 Hz
• Load Rating: @120 VAC, 0-800 W ballast or tungsten, 1/6 hp; @277 VAC, 0-1200 W ballast
• Time Delays: 5, 10, 15, 20, 25, or 30 minutes; walk-through and test modes
• Coverage: Major motion 35‚Äô x 30‚Äô; Minor motion 20‚Äô x 15‚Äô
• Sensitivity Adjustment: PIR high/low
• Dimensions: 2.73‚Äù x 1.76‚Äù x 1.83‚Äù (69.3mm x 44.7mm x 46.5mm) L x W x D
• UL and cUL Listed
• Product Weight: 3.75 lbs
• Manufacturer Part Number: PW103NG
• Indicator: LED Light
• Five Year Warranty

Features

• High sensitivity and dense coverage for exceptional occupancy detection
• Multi-way control from up to four locations, allowing flexible lighting management
• Selectable Manual-ON or Auto-ON operation modes to optimize energy savings
• Field-selectable LED nightlight with options for amber, white, or blue colors and two light intensity levels
• Detection Signature Processing technology eliminates false triggers and provides immunity to RFI and EMI
• Zero-crossing relay operation for extended relay life
• Vandal-resistant lens combining precise coverage with durability
• Selectable walk-through mode to automatically turn lights off after brief occupancy
• Test mode for quick and easy sensor adjustments
• Selectable audible and/or visual alerts for impending shutoff
• Service mode allows sensor to function as a manual service switch in case of failure
• Compatible with decorator wall plates
