WATTSTOPPER PW-103N-B PIR MULTI-WAY WALL SWITCHSENSOR W/ NIGHTLIGHT BLACK
SKU: #252517
Part: #PW103NB
UPC: 754182928637
WATTSTOPPER PW-103N-B PIR MULTI-WAY WALL SWITCHSENSOR W/ NIGHTLIGHT BLACK
SKU: #252517
Part: #PW103NB
UPC: 754182928637
Next day delivery
Description

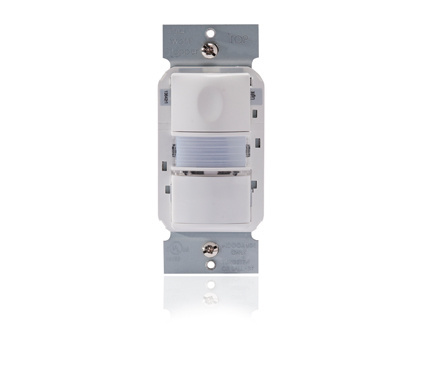

WATTSTOPPER PW-103N-B PIR Multi-Way Wall Switch Sensor with Nightlight
The WATTSTOPPER PW-103N-B is a passive infrared (PIR) multi-way wall switch occupancy sensor designed for controlling lighting based on occupancy detection. It is suitable for electrical distributors and lighting solutions providers looking for advanced wire and cable compatible switchgear supplier products that optimize energy usage in spaces with multiple doorways or switch locations. This sensor integrates a field-selectable nightlight and supports multi-way control from up to four locations, making it ideal for private offices, conference rooms, restrooms, and similar applications.
Specifications
- Voltage: 120/277 VAC; 50/60 Hz
- Load Rating: @ 120 VAC, 0-800 W ballast or tungsten, 1/6 hp; @ 277 VAC, 0-1200 W ballast
- Time Delays: 5, 10, 15, 20, 25, or 30 minutes, walk-through, test-mode
- Coverage: Major motion 35’ x 30’, Minor motion 20’ x 15’
- Sensitivity Adjustment: PIR (high/low)
- Dimensions: 2.73” x 1.76” x 1.83” (69.3mm x 44.7mm x 46.5mm) L x W x D
- UL and cUL Listed
- Product Weight: 3.8 lbs
- Five Year Warranty
- Indicator: LED Light
Features
- Advanced PIR technology for high sensitivity to small and large movements
- True multi-way control allowing operation from up to four switch locations
- Field-selectable nightlight with three color options (amber, white, blue) and two intensity levels
- Selectable operation modes: Manual-ON, Auto-ON, walk-through, test, and presentation modes
- Detection Signature Processing to eliminate false triggers and provide immunity to RFI and EMI
- Zero-crossing relay for extended relay life
- Vandal resistant lens with precise coverage and durability
- Selectable audible and/or visual alerts for impending shutoff
- Service mode enables sensor to function as a service switch in case of failure
- Compatible with decorator wall plates
- LED indicates occupancy detection
