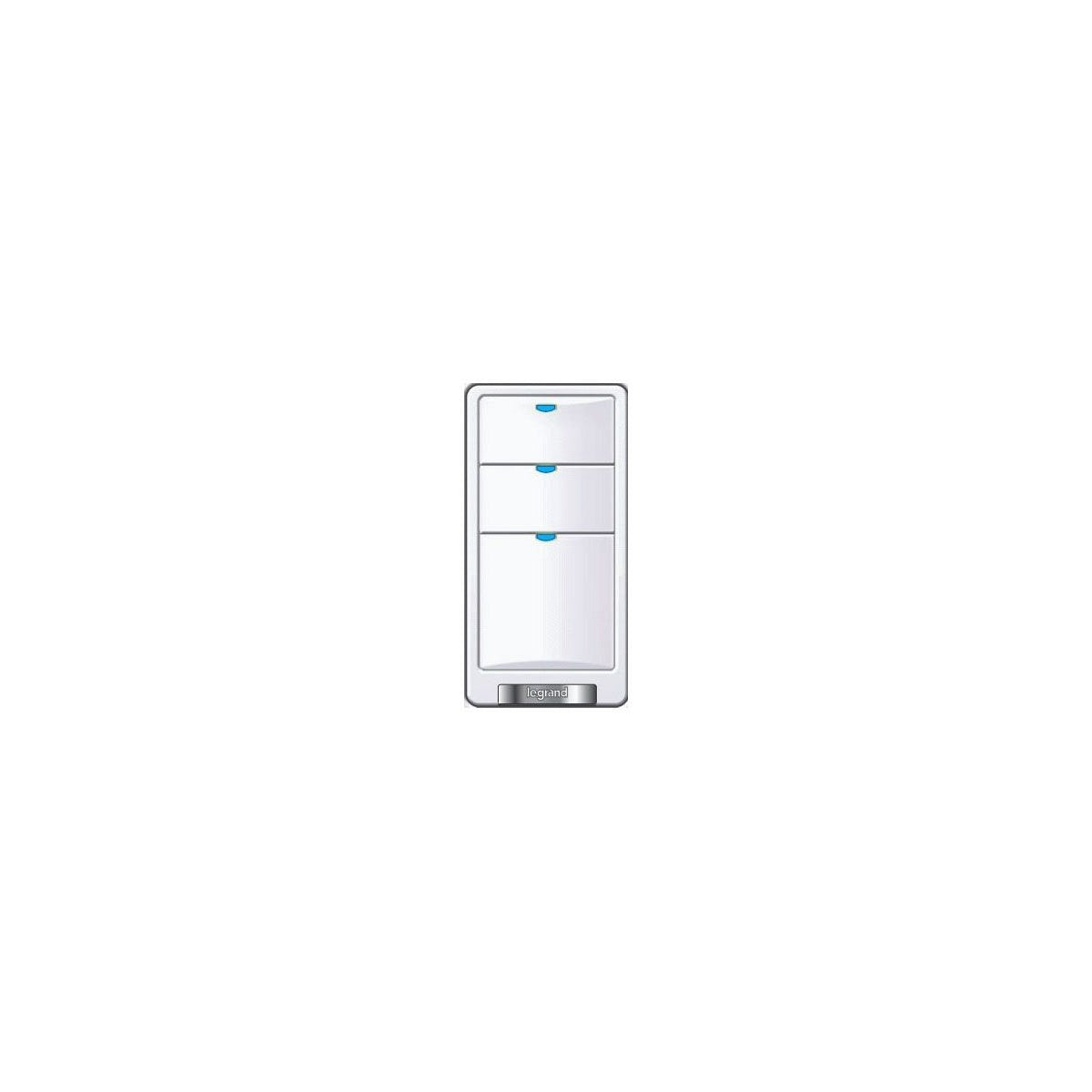

WATTSTOPPER LMSW-103-LA Digital Switch 3-Button with Infrared Light Almond

The WATTSTOPPER LMSW-103-LA is a low voltage digital switch designed for manual on/off control of multiple electrical loads within a Digital Lighting Management (DLM) system. This 3-button switch integrates with DLM room controllers to manage lighting loads efficiently. Ideal for indoor use, it provides a reliable interface for lighting solutions and wire and cable connectivity through Cat 5e cables, making it suitable for electrical distributors and switchgear suppliers managing integrated lighting control systems.

Specifications

• Number of Buttons: 3
• Voltage: 24 VDC
• Current Consumption: 5 mA
• Power Supply: Wattstopper Room Controller
• Connection to DLM Local Network: 2 RJ-45 ports
• Color: Light Almond
• Product Width: 2.0 in
• Product Height: 4.49 in
• Product Depth: 2.24 in
• Product Weight: 0.25 lb
• Environment: Indoor Use Only
• Country of Origin: China

Features

• Low voltage pushbutton switch for control of multiple loads
• Part of Digital Lighting Management integrated control system
• Plug connection to other components using Cat 5e cables with RJ45 connectors to eliminate wiring errors
• Customizable buttons with LED status indicators
• Infrared transceiver for wireless configuration and remote control
• Plug n’ Go automatic configuration and Push n’ Learn technology for personalized load binding
• Supports free topology wiring up to 1,000 feet maximum
