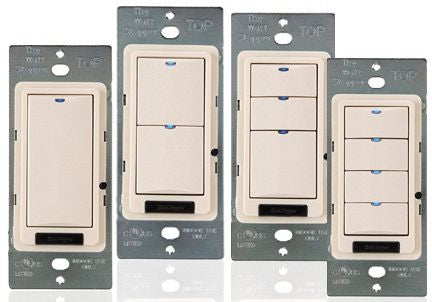

WATTSTOPPER LMSW-102-B Digital Switch 2-Button with Infrared Black

The WATTSTOPPER LMSW-102-B is a low voltage digital wall switch designed for manual on/off control of multiple lighting loads within a Digital Lighting Management (DLM) system. Ideal for integration by electrical distributors and lighting solutions providers, it connects via a Class 2 DLM local network using Cat 5e cables with RJ45 connectors. This 2-button switch features infrared (IR) communication for wireless configuration and remote control, enabling flexible and energy-efficient lighting control in commercial environments such as offices, conference rooms, and classrooms.

Specifications

• Input Voltage: 24VDC from DLM local network
• Current Consumption: 5mA
• DLM Local Network Connection: 2 RJ-45 ports
• Control Buttons: 2 buttons with LED status indicators
• Operating Temperature: 32° to 131°F (0° to 55°C)
• Storage Temperature: 23° to 176°F (-5° to 80°C)
• Relative Humidity: 5 to 95% (non-condensing)
• UL and cUL Listed
• FCC Part 15 Compliant
• Indoor Use Only
• Dimensions: 4.1” (104mm) height, 1.7” (43mm) width, 1.3” (33mm) depth

Features

• Low voltage pushbutton switch for energy-saving manual control of multiple loads
• Plug n’ Go™ automatic load assignment with optional Push n’ Learn™ personalization
• Infrared transceiver for two-way wireless configuration and remote control
• Customizable buttons with LED indicators showing load or scene status
• Supports multi-way control when multiple switches are installed
• Compatible with WattStopper DLM room controllers and network components
• Fits standard single gang electrical boxes, compatible with decorator-style wall plates (sold separately)
• Complies with RoHS material restrictions and available in BAA/TAA-compliant models
