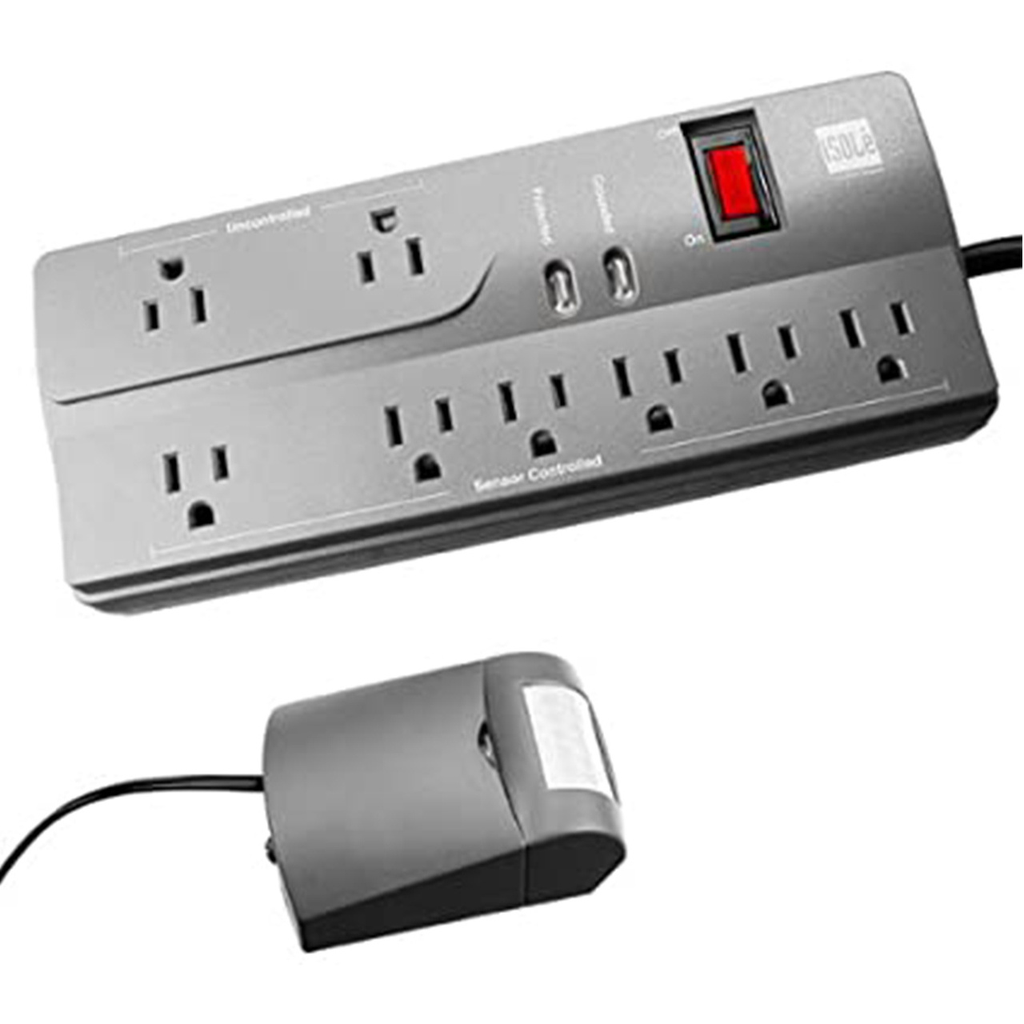

WATTSTOPPER DI-110 Isolé Power Strip with Personal Sensor

The WATTSTOPPER DI-110 is a gray-colored, eight-outlet power strip integrated with a personal occupancy sensor designed for energy-saving control of desktop plug load equipment. Ideal for electrical distributors and lighting solutions providers, this system automatically powers controlled devices on and off based on occupancy, making it suitable for workstations, open office cubicles, and engineering stations. It features surge and noise suppression to protect connected equipment and supports plug load management without requiring hardwiring.

Specifications

• Electrical Rating: 120VAC, 12A, 50/60 Hz
• 12A dry contact relay
• Cord Length: 6 ft. black cord
• Surge Suppression: 740 joules, maximum surge amperage 48,000 Amps
• Protection Modes: 500V L-N, 600V L-G, 600V N-G
• Response Time: instantaneous
• Noise Filtration: 0–25db (94.38%)
• UL 1449 3rd Edition rating: 600V
• Power Supply for Sensor: Transformer provides power to sensor
• Personal Sensor Supply Voltage: 12VDC
• Personal Sensor Connector Cable Length: 9 ft.
• Time Delay Adjustment: 30 seconds to 30 minutes via trim pot (30 min default)
• UL and cUL Listed
• Product Weight: 0.2200 lbs

Features

• Eight outlets: six controlled by occupancy, two uncontrolled
• Surge and noise suppression protects desktop equipment
• Ground protected for safety; will not operate without a grounded outlet
• Two LEDs indicate correct wiring/grounding and surge protection status
• Flat offset plug for wire management
• One uncontrolled outlet and one controlled outlet are wall-transformer-enabled
• Plugs into a standard three-prong outlet; installation requires no hardwiring
• Personal sensor uses passive infrared (PIR) technology with 120° coverage up to 300 sq ft
• User-adjustable time delay for occupancy sensing
• Multi-level Fresnel lens for superior occupancy detection
• ASIC technology enhances sensor reliability with instantaneous response time
• Five year warranty on both power strip and personal sensor
