Features

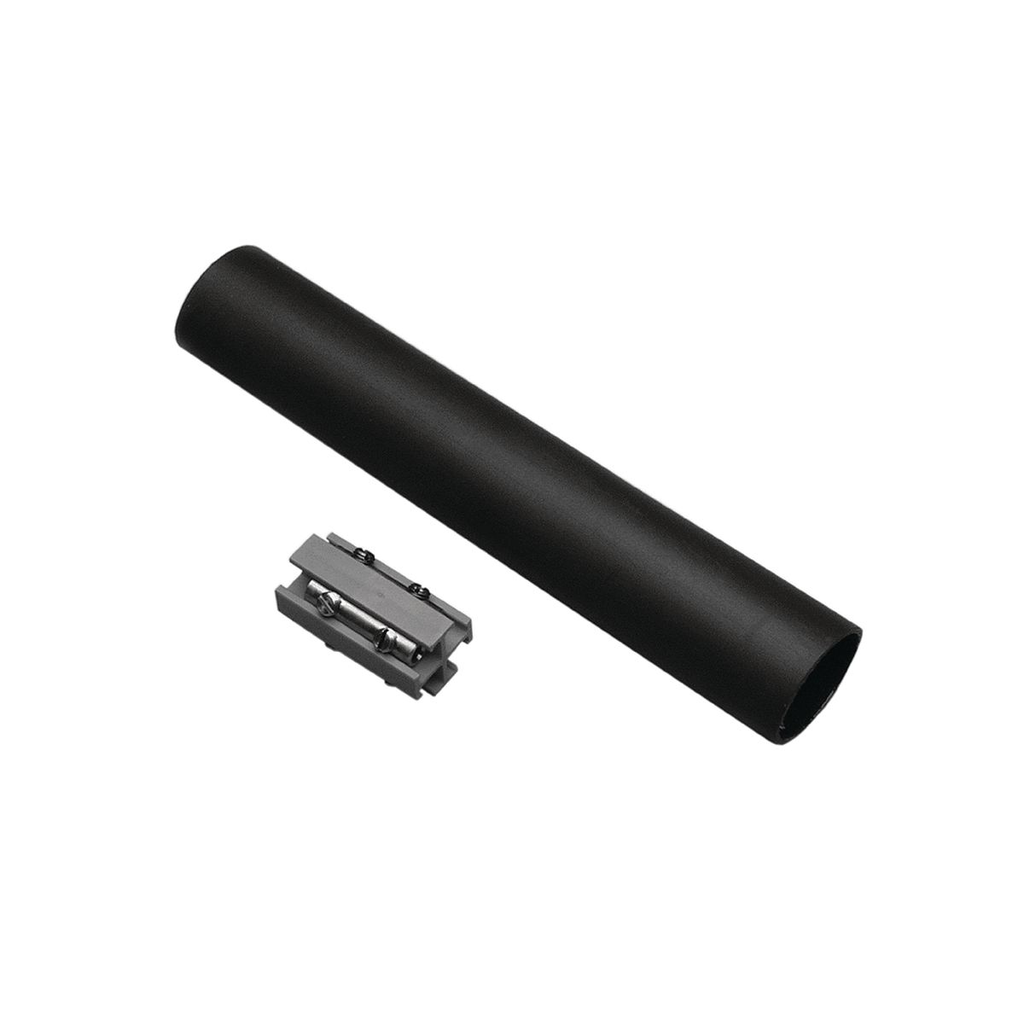

• Type UGSKIT are underground splice kits (watertight) for aluminum or copper
• Kit consists of a standard splice/reducer and includes heavy wall heat-shrink sleeve
• Dual rated for use with aluminum and copper
• Connector is installed with common installation tools
• Both heavy wall heat shrink sleeves are lined with adhesive material providing a watertight splice
• Type UGS Watertight Underground Splice Kit Consists Of A Standard Ams Splice/Reducer And Two Heavy Wall Heat-Shrink Sleeves, The Ams Splice Is Dual Rated For Use With Aluminum And Copper Conductors And Are Constructed From High Strength, Tin Plated Aluminum That Provides Low Contact Resistance And Reduces The Effects Of Galvanic Corrosion, Connector Installed With Common Installation Tools, Both Heavy Wall Heat Shrink Sleeves Are Lined With Adhesive Material, Providing A Watertight Splice That Can Withstand Abrasions That May Occur During Direct Burial Applications, Heat Shrink Sleeve Installed With Standard Propane Torch, Or Electric Heat Gun, Includes: (2) Slotted Hex Screws, Material: Aluminum, Finish: Tin Plated

Specifications

• Country of Origin: United States
• Buy American Compliant: No
• Conductor - AL Str Size: 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG
• Conductor - AL Str Size Range: 8 AWG-2 AWG
• Conductor - Copper Str Size: 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
• Conductor - Copper Str Size Range: 8 AWG-2 AWG
• Description - Slang: Splice Kit
• Dimension - L Length Overall mm: 35 mm
• Dimension - Length Overall inch: 1.38 in
• Width: 1.10 in
• Each - Width: 1.10 in
• Hex Size: Slot
• Industry Standard(s): UL486D
• Physical Attribute - Screw Type: Allen
• Plated: N
• Plating Type: Unplated
• Product Type: SPLICE REDUCER
• Rating - Minimum Voltage: 600
• Standards - Industry Standards Met: UL486D
• Standards - RoHS Compliance Status: CM
• Application: For All Aluminum or Copper/Aluminum Combinations, UF Direct Burial
• Special Features: Features: Type UGS Watertight Underground Splice Kit Consists Of A Standard Ams Splice/Reducer And Two Heavy Wall Heat-Shrink Sleeves, The Ams Splice Is Dual Rated For Use With Aluminum And Copper Conductors And Are Constructed From High Strength, Tin Plated Aluminum That Provides Low Contact Resistance And Reduces The Effects Of Galvanic Corrosion, Connector Installed With Common Installation Tools, Both Heavy Wall Heat Shrink Sleeves Are Lined With Adhesive Material, Providing A Watertight Splice That Can Withstand Abrasions That May Occur During Direct Burial Applications, Heat Shrink Sleeve Installed With Standard Propane Torch, Or Electric Heat Gun, Includes: (2) Slotted Hex Screws, Material: Aluminum, Finish: Tin Plated
• Standard: UL486D
• Sub Brand: SPLICE KIT
• Type: UGSKIT, Watertight/ Underground
• Conductor Size: 8-2 AWG
• Connector Type: Splice/Heat Shrink Kit
• Temperature Rating: 194
• ARRA Compliant: No
• Class Code: B51
• Description - Invoice: UNDERGROUND-DIRECT BURIAL SPLICE KIT
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B51BGIF
• UL Listed: Yes
• Material: Aluminum
• Base Unit of Measure: EA
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810175279
• Case - SCC-14 Next Lower Level Sub Pack: 30781810175270
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 1.4 lb.
• Package - GTIN - Package: 30781810175270
• Package - Number of Sub Packs: 10
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810175279
• Package - Total Units: 10 EA
• Package Height: 1.5 in
• Package Length: 9.00 in
• Package Quantity: 10 EA
• Package Weight: 1.4 lb.
• Package Width: 4.00 in
• Standard Package Quantity: 10

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Listed Direct Burial: Yes
• UL Recognized: No
• EU RoHS Indicator: Yes
