WATERTIGHT RECEP ASSY,NEMA L15-30 BK
SKU: #145271
Part: #HBL69W75BK
UPC: 783585511320
WATERTIGHT RECEP ASSY,NEMA L15-30 BK
SKU: #145271
Part: #HBL69W75BK
UPC: 783585511320
Description

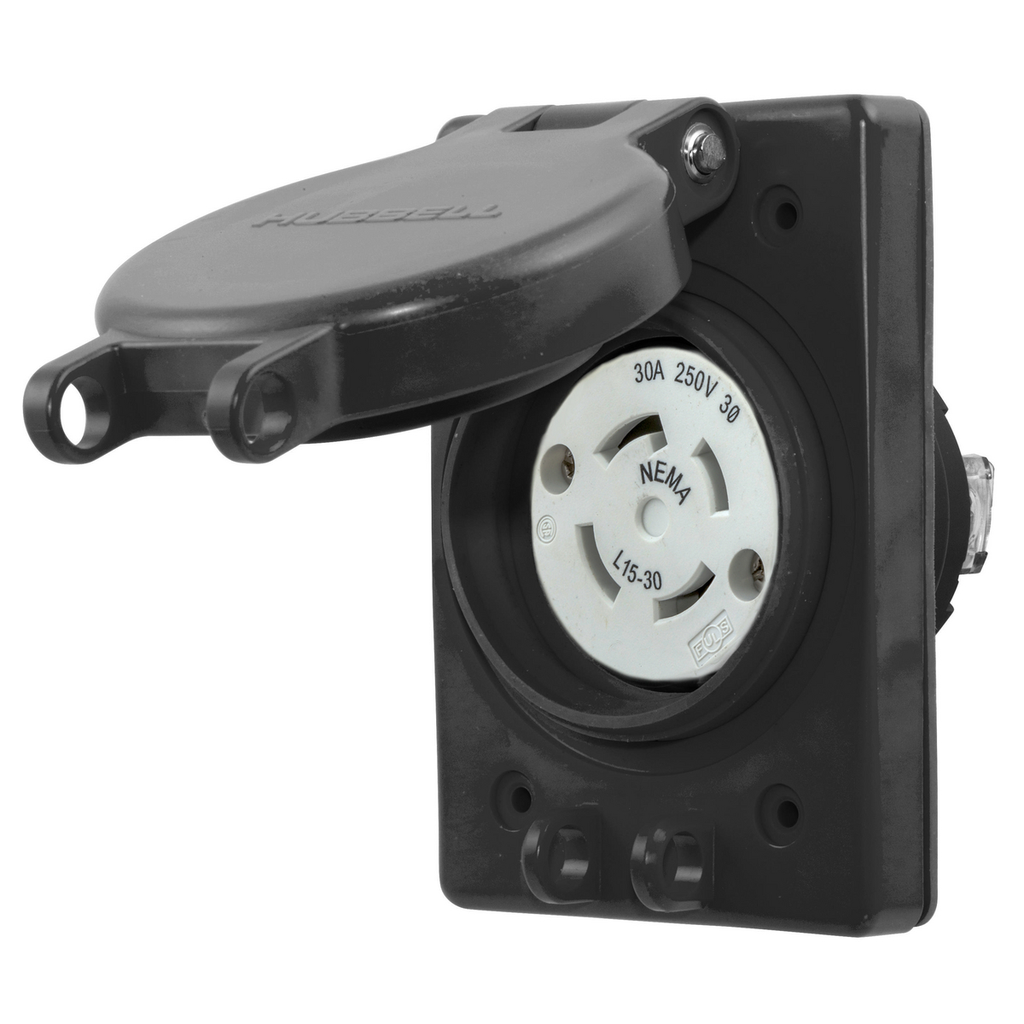

WATERTIGHT RECEP ASSY,NEMA L15-30 BK – Watertight Twist-Lock Receptacle
This watertight Twist-Lock receptacle is designed for secure electrical connections in demanding environments. Rated for 30 amperes and 3-phase 250V AC, it features a 3-pole, 4-wire configuration suitable for industrial and commercial applications. Ideal for electrical distributors, lighting solutions, wire and cable systems, and switchgear suppliers requiring durable, watertight devices.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL69W75BK
- Amperage: 30 amperes
- Current Rating: 30 amperes
- Voltage: 250V AC
- Number of Poles: 3-Pole
- Number of Wires: 4-Wire
- NEMA Rating: L15-30R
- Material: Thermoplastic elastomer (body and seal), PBT lid and cover plate
- Color: Black
- Width: 3.25 in
- Product Weight: 3.75 lbs
- Country of Origin: China
- Electrical Performance: Rated for current interruption per UL498, dielectric voltage 2500V AC, max working voltage as marked, temperature rise 30°C max per UL498 at rated current
- Environmental: UL Listed 4, 4X, 12, 6, 6P; operating temperatures -40°C to +60°C continuous; UV stabilized materials
Features
- Watertight design with thermoplastic elastomer seal and double insulated elastomeric cover
- Impact resistant PBT lid, cover plate, and receptacle body
- Stainless steel hardware and corrosion-resistant connection points
- Safety-Shroud recessed blades protect against bending and breaking for longer life
- Maintains UL Type 4X watertight seal when in use and disconnected with closure cap
- Meets NEMA WD-1, WD-6, ANSI standards, UL498, and CSA C22.2 No. 42 listings
- UV stabilized for durability in outdoor and harsh environments
