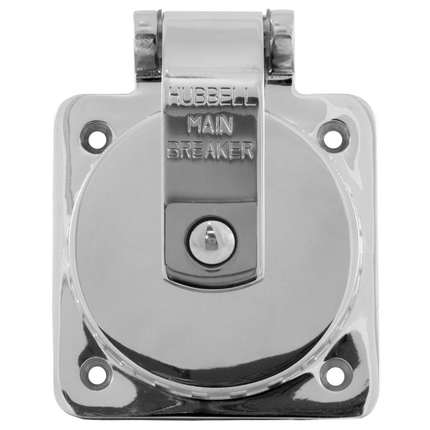

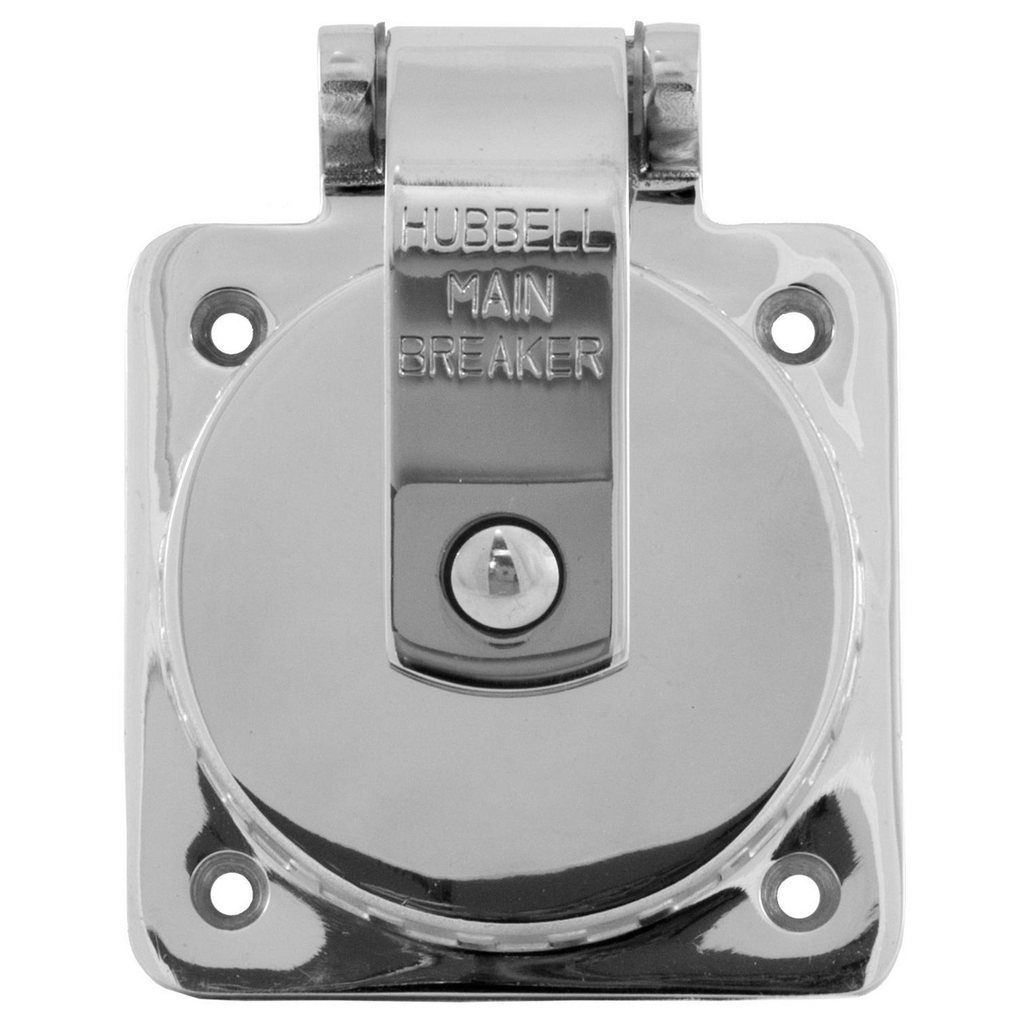

Wallplates and Boxes, Marine Products, Replacement Circuit Breaker Inlet Cover – Marine Wiring Devices

This replacement circuit breaker inlet cover is designed for marine wiring applications, providing a durable and watertight enclosure suitable for electrical distributors and switchgear suppliers involved in marine and industrial environments. Constructed with stainless steel and thermoplastic materials, it offers corrosion resistance and reliable protection for circuit breaker inlets. The product supports 30A amperage and 2-pole, 3-wire grounding configurations, making it compatible with Carling series breakers. Its screw mount design and pressure screw terminals facilitate secure installation and connection.

Specifications

• Application: Marine Wiring Devices
• Material: Thermoplastic
• Amperage Rating: 30 A
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• Mounting: Screw Mount
• Connection: Pressure Screw Terminals
• Width: 4.3 in
• Dielectric Strength: Withstands 3000V Minimum
• Environmental Conditions: Watertight, IP56 Moisture Resistance
• NEMA Rating: Non-NEMA
• Manufacturer: Hubbell Wiring Device-Kellems
• Country of Origin: China

Features

• Traditional stainless steel inlet housing providing corrosion resistance
• Blank cover designed for attaching a circuit breaker (not included)
• Includes mounting hardware compatible with Carling series breakers
• Watertight design suitable for marine environments
• UL Listed for safety and compliance

Downloads & Links

• Warranty Document Asset Reference
• Catalog Full Asset Reference
• Spec Sheet
• Hubbell Marine Full Line Catalog
• Installation Manuals Asset Reference
• Sales Drawing Asset Reference
• Catalog Page Asset Reference
