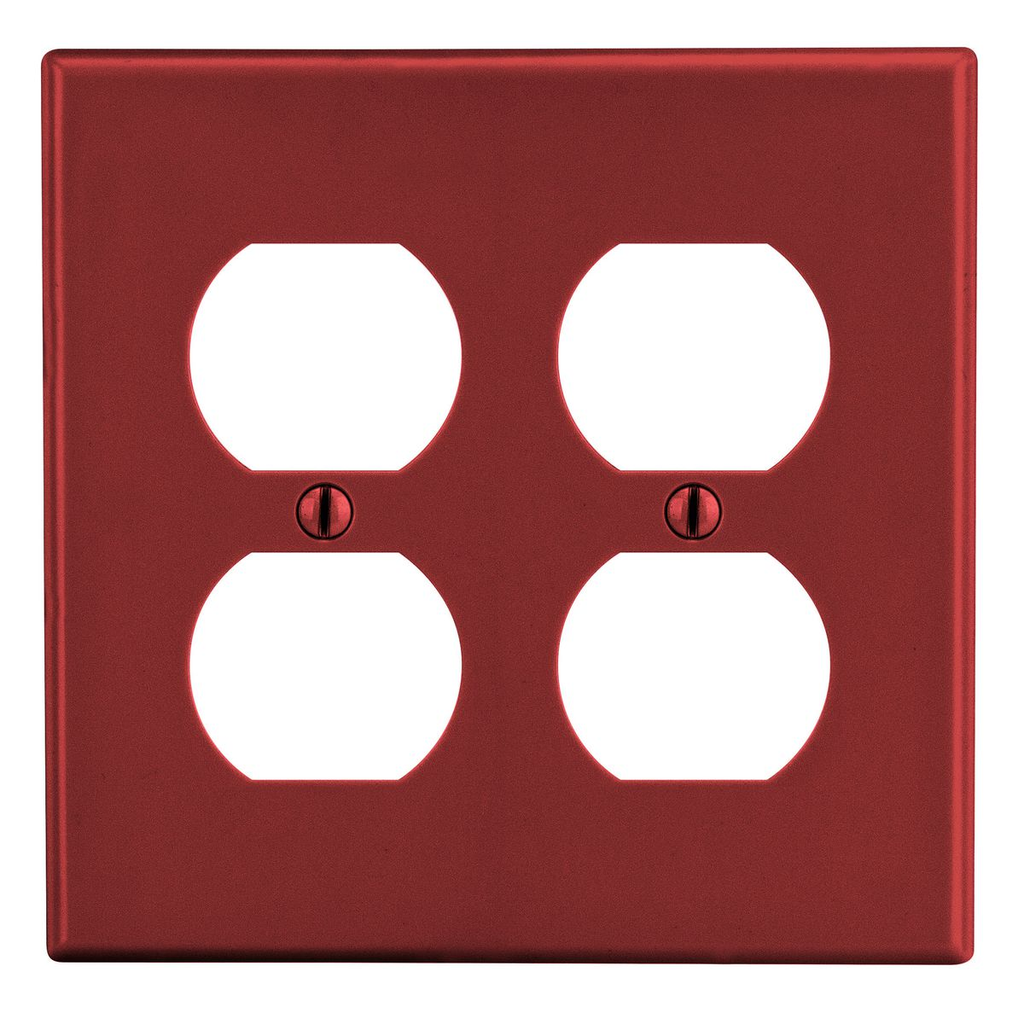

Wallplate, Duplex - Electrical Wallplate for Receptacles

This Wallplate, Duplex is designed for use with duplex receptacles, providing a durable and reliable cover solution for electrical outlets. Manufactured by Bryant, it is suitable for electrical distributors and lighting solutions providers requiring high-quality wire and cable accessories and switchgear components. The wallplate is constructed from polycarbonate thermoplastic with a painted steel mounting, ensuring robust performance in commercial and residential electrical installations.

Specifications

• Name: Wallplate, Duplex
• Application: For use with Receptacle
• Color: Red
• Material: Polycarbonate thermoplastic
• Mounting: Painted Steel
• Width: 4.620 in
• Cutout: Duplex
• Orientation: Vertical
• Number of Gangs: 2
• Product Weight: 0.9640 lbs
• Manufacturer: Bryant
• Manufacturer Part #: P82R
• Country of Origin: China
• NEMA Color: Red

Features

• 2-Gang design accommodates two duplex receptacles
• Durable polycarbonate thermoplastic construction for impact resistance
• Painted steel mounting screws included for secure installation
• Vertical orientation aligns with standard electrical outlet configurations
• Red color coding for easy identification and aesthetic integration
