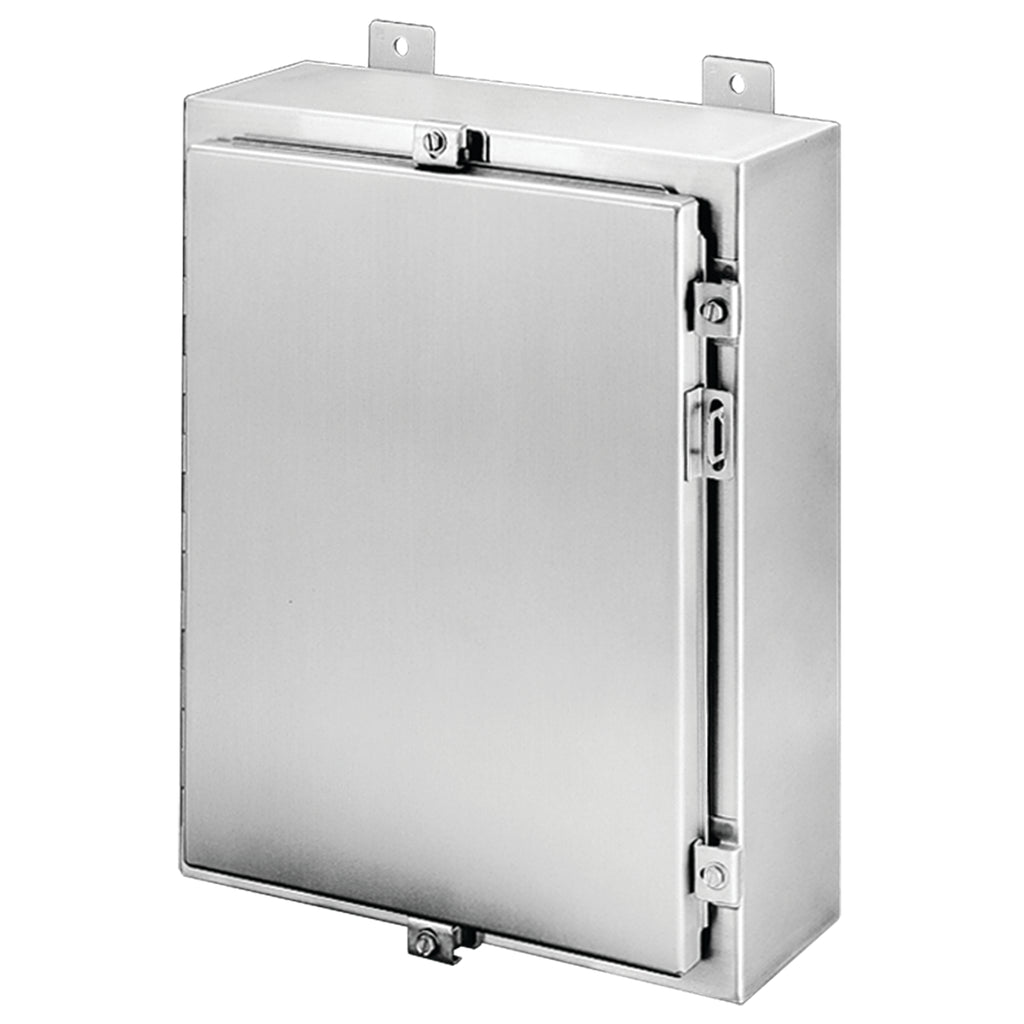

Description
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Stainless steel door clamp assembly
- Hasp and staple for padlocking
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Specifications
- Length: 53.00 inch
- Width: 37.30 inch
- Height: 12.00 inch
- Weight: 126.00 pound
- Height (H) (inch): 48
- Height (H) (millimetre): 1,219
- Width (W) (inch): 36
- Width (W) (millimetre): 914
- Depth (D) (inch): 10
- Depth (D) (millimetre): 254
- Protection Rating: NEMA Type 12
- Finish: Brushed #4
- Material: Stainless Steel 304
- Color: Unpainted
- Thickness (T) (gauge): 14
- Thickness (T) (millimetre): 1.98
- NEMA Rating: 4X Watertight, corrosion-resistant
- Panel Size (D x E) (inch): 45.00 x 33.00
- Panel Size (D x E) (millimetre): 1143 x 838
- Steel Panel: A48P36
- Stainless Steel Type: 304
- Data Pocket: Large
- Conductive Steel Panel: A48P36G
- Stainless Steel Panel: A48P36SS6
- Clamp Quantity: 8
- Modification Services: Yes
- Type Number: Type 3R
- IP Rating: IP66
- Weight (pound): 126
- Size: 48.00x36.00x10.00 in
Downloads
Spec SheetCertificate
Declaration of Conformity, CSA Type 12 NAM-US English CERT-00264Declaration of Conformity, CSA Type 12 NAM-CA English CERT-00264
Declaration of Conformity, CSA Type 12 EMEA-EUR English CERT-00264
CERT-00078 NAM-US English CERT-00078
CERT-00078 NAM-CA English CERT-00078
CERT-00078 EMEA-EUR English CERT-00078
Declaration of Conformity: Type 4X Stainless Steel Enclosures NAM-US English CE-UKCA-00034_Enclosure-SS-4X
Declaration of Conformity: Type 4X Stainless Steel Enclosures NAM-CA English CE-UKCA-00034_Enclosure-SS-4X
Declaration of Conformity: Type 4X Stainless Steel Enclosures EMEA-EUR English CE-UKCA-00034_Enclosure-SS-4X
Data Sheet
Continuous Hinge with Clamps, Type 4X Spec Sheet NAM-CA English Spec-00374Continuous Hinge with Clamps, Type 4X Spec Sheet EMEA-EUR English Spec-00374
Bisagra continua con abrazadera tipo 4X Hoja de especificaciones NAM-US Spanish Spec-00831
Instruction Manual
Lockwasher and Hub Installation Instruction Manual NAM-US English 99401640Lockwasher and Hub Installation Instruction Manual NAM-CA English 99401640
Lockwasher and Hub Installation Instruction Manual EMEA-EUR English 99401640
Large Enclosure Handling Instructions NAM-US English 35320001
Large Enclosure Handling Instructions NAM-CA English 35320001
Large Enclosure Handling Instructions EMEA-EUR English 35320001
Grounding Kit Instruction Manual NAM-US English 87743623
Grounding Kit Instruction Manual NAM-CA English 87743623
Grounding Kit Instruction Manual EMEA-EUR English 87743623
Enclosure Alterations NAM-US English 99401677
Enclosure Alterations NAM-CA English 99401677
Enclosure Alterations EMEA-EUR English 99401677
Related Products
Accessory
- AL16
- AS050SS
- TE162024011
- LED24V15
- A48P36AL
- A48P36G
- A48P36
- A48P36SS6
- AFC412SS
- AWDH1612N4SS
- AWDH3624N4SS
- AWDH2420N4SS
- APWK1711NFSS
- AWDH1418N4SS
- AWDH3024N4SS
- APWK53NFNM
- APWK53NFSS
- AWDH2016N4SS
- APWK715NFSS
- APWK95NFSS
- APWK2315NFSS
- APWK116NFNM
- APWK138NFSS
- APWK2919NFSS
- APWK711NFSS
- APWK729NFSS
- AWDH2430N4SS
- AWDH2416N4SS
- APWK720NFSS
- APWK138NFNM
- APWK95NFNM
- ADSTOPKSS6
- ALFSWD
- ACSHELF1818SS
- ACSHELF2424SS
- ACSHELF1212SS
- AHCI5E
- AHCI240R
- AHCI238S
- AHCI10E
- AHCI1DV
- AHCI60R
- A48T
- A36T
- LEDA1S35
- LEDA2S35
- APE100
- APE050
- AS050
- AFK1810SS
- AFK1210SS6
- A36NTMA3
- AFK1210SS
- AFK2410SS6
- ANADFK
- AFK0610SS
- AFK2410SS
- ATZ
- AFK0610SS6
- AFK1810SS6
More Information
Manufacturer Catalog Number
A48H3610SSLP
Weight
126.0000
Length
53.00
Width
37.30
Height
12.00
Country of Origin
United States
Made in Usa
Yes
Material
Stainless Steel
Depth
10 inches
Finish
Brushed
