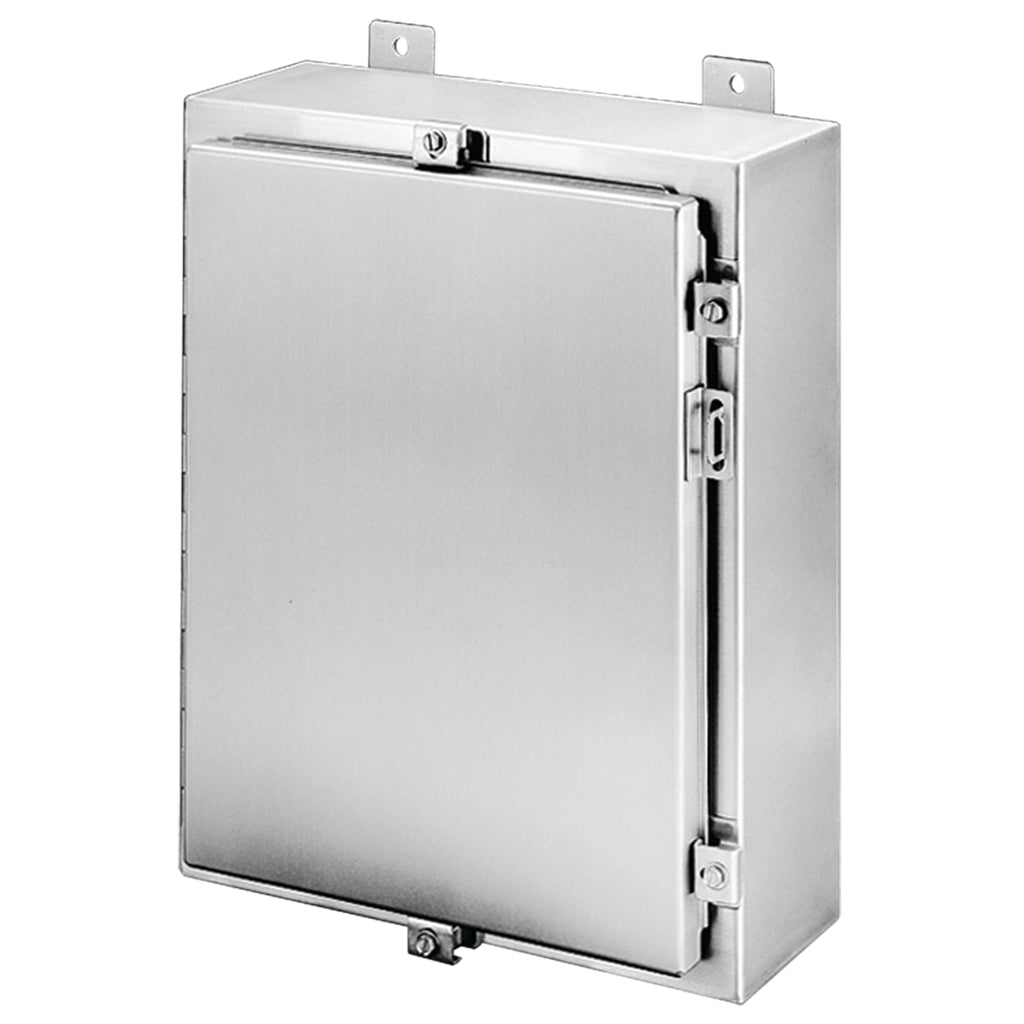

Wallmount Hinged with NEMA Clamps Type 4X, 36x36x12, Brushed, SS316
SKU: #132920
Part: #A36H3612SS6LP
UPC: 783510837907
Wallmount Hinged with NEMA Clamps Type 4X, 36x36x12, Brushed, SS316
SKU: #132920
Part: #A36H3612SS6LP
UPC: 783510837907
Description
Wallmount Hinged with NEMA Clamps Type 4X, 36x36x12, Brushed, SS316 Continuous Hinge Enclosure
This stainless steel wall-mount enclosure is designed for indoor and outdoor corrosive environments requiring a water-tight seal. Featuring a seamless foam-in-place gasket and screw-down clamps, it provides secure protection against contaminants. Suitable for electrical distributors and switchgear suppliers, it supports industrial control panels and lighting solutions installations requiring durable wire and cable protection.
Specifications
- Material: Stainless Steel Type 316L
- Finish: Brushed #4 smooth finish on door, sides, top, and bottom
- Dimensions: 36.00 inches height x 37.50 inches width x 12.00 inches depth
- Enclosure Rating: NEMA Type 4X, UL508A Listed, cUL Listed, CSA Certified
- Weight: 105 lbs
- Manufacturer: nVent Hoffman
- Manufacturer Part #: A36H3612SS6LP
- Country of Origin: United States (Made in USA)
- Order Minimum: 1 unit
Features
- Continuous stainless steel hinge with removable hinge pin for easy door removal
- Seamless foam-in-place gasket ensures a water-tight seal against contaminants
- Stainless steel door clamp assembly with hasp and staple for padlocking
- Rolled lip around three sides of the door enhances sealing
- Data pocket made of high-impact thermoplastic included
- Collar studs provided for mounting optional panels
- Exterior hardware matches enclosure material for corrosion resistance
- Bonding provision on door and grounding stud on body for electrical safety
Downloads & Links
- CERT-00078 EMEA-EUR English CERT-00078
- Continuous Hinge with Clamps, Type 4X Spec Sheet EMEA-EUR English Spec-00374
- Enclosure Alterations NAM-US English 99401677
- Large Enclosure Handling Instructions NAM-CA English 35320001
- Large Enclosure Handling Instructions NAM-US English 35320001
- Continuous Hinge with Clamps, Type 4X Spec Sheet NAM-CA English Spec-00374
- Declaration of Conformity, CSA Type 12 NAM-CA English CERT-00264
- Lockwasher and Hub Installation Instruction Manual NAM-US English 99401640
- Large Enclosure Handling Instructions EMEA-EUR English 35320001
- Declaration of Conformity: Type 4X Stainless Steel Enclosures NAM-CA English CE-UKCA-00034_Enclosure-SS-4X
- Grounding Kit Instruction Manual NAM-US English 87743623
- Lockwasher and Hub Installation Instruction Manual NAM-CA English 99401640
- Declaration of Conformity: Type 4X Stainless Steel Enclosures EMEA-EUR English CE-UKCA-00034_Enclosure-SS-4X
- Lockwasher and Hub Installation Instruction Manual EMEA-EUR English 99401640
- Declaration of Conformity, CSA Type 12 NAM-US English CERT-00264
- Declaration of Conformity: Type 4X Stainless Steel Enclosures NAM-US English CE-UKCA-00034_Enclosure-SS-4X
- Grounding Kit Instruction Manual NAM-CA English 87743623
- CERT-00078 NAM-US English CERT-00078
- Bisagra continua con abrazadera tipo 4X Hoja de especificaciones NAM-US Spanish Spec-00831
- Declaration of Conformity, CSA Type 12 EMEA-EUR English CERT-00264
- CERT-00078 NAM-CA English CERT-00078
- Enclosure Alterations NAM-CA English 99401677
- Enclosure Alterations EMEA-EUR English 99401677
- Grounding Kit Instruction Manual EMEA-EUR English 87743623
- Spec Sheet
