Wallmount Hinged with NEMA Clamps Type 4X, 36x36x12, Brushed, SS304
SKU: #132931
Part: #A36H3612SSLP
UPC: 783510290702
Wallmount Hinged with NEMA Clamps Type 4X, 36x36x12, Brushed, SS304
SKU: #132931
Part: #A36H3612SSLP
UPC: 783510290702
Description

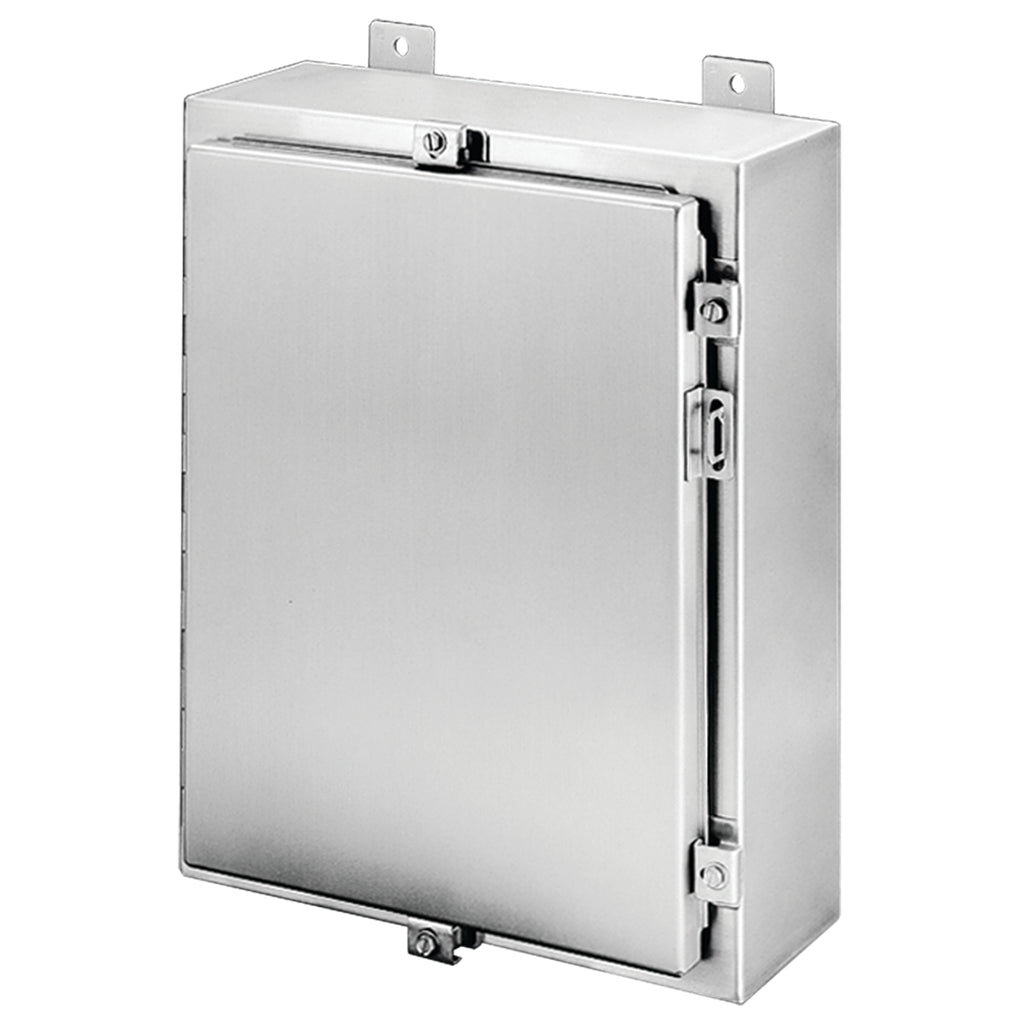

Wallmount Hinged with NEMA Clamps Type 4X, 36x36x12, Brushed, SS304 Continuous Hinge with Clamps LP
This stainless steel wallmount enclosure is designed for indoor and outdoor corrosive environments requiring a water-tight seal. Featuring a Type 4X NEMA rating, it provides secure protection for electrical components, suitable for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers. The enclosure's seamless foam-in-place gasket and screw-down clamps ensure a reliable seal against contaminants.
Specifications
- Material: Stainless Steel (Type 304)
- Finish: Brushed #4
- Dimensions (HxWxD): 14.00 inch x 37.50 inch x 12 inch
- Manufacturer: nVent Hoffman
- Manufacturer Part #: A36H3612SSLP
- Order Minimum: 1
- Product Weight: 103 lbs
- Country of Origin: United States
- Made in USA: Yes
- NEMA Type: 4X
- UL Listed: UL 508A, Type 3R, 4, 4X, 12
- cUL Listed: CSA C22.2 No 94, Type 3R, 4, 4X, 12
- IEC Rating: IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Features
- 14 gauge stainless steel body and door, continuously welded and ground smooth
- Seamless foam-in-place gasket for water-tight sealing
- Rolled lip around three sides of door for enhanced sealing
- Stainless steel door clamp assembly with hasp and staple for padlocking
- Door removable by pulling stainless steel continuous hinge pin
- High-impact thermoplastic data pocket included
- Collar studs provided for mounting optional panels
- Exterior hardware matches enclosure material (Type 316L for corrosion resistance)
- Bonding provision on door and grounding stud on body for electrical safety
- Designed for use in corrosive environments requiring durable, water-tight enclosures
