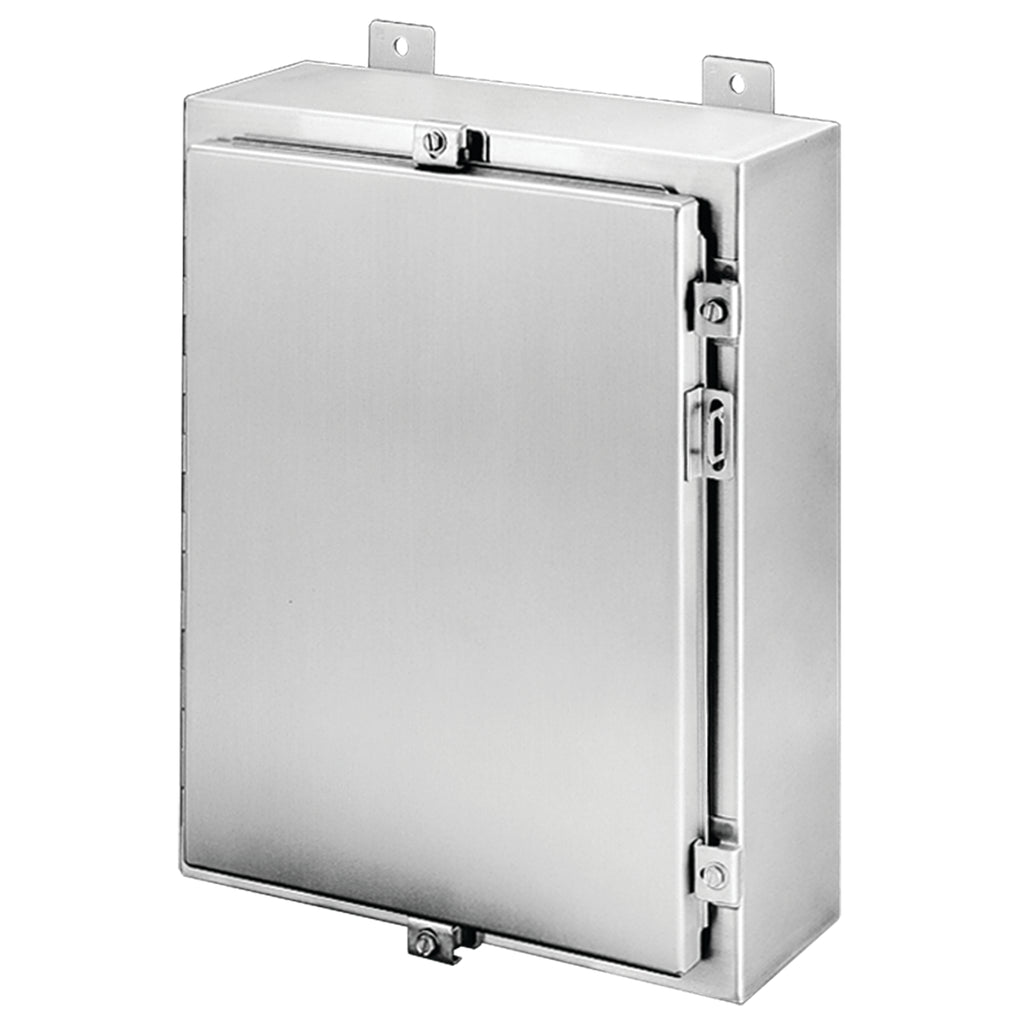

Wallmount Hinged with NEMA Clamps Type 4X, 36x24x8, Brushed, SS304 - Continuous Hinge with Clamps LP

This Wallmount Hinged enclosure with NEMA clamps is designed for use in indoor and outdoor corrosive environments requiring a water-tight seal. Manufactured by nVent Hoffman, it features a seamless foam-in-place gasket and screw-down clamps to ensure secure protection against contaminants. Suitable for electrical distributors and switchgear suppliers, this stainless steel enclosure supports reliable housing of electrical components and lighting solutions.

Specifications

• Material: Stainless Steel (Type 304)
• Finish: Brushed #4 smooth finish
• Dimensions (L x W x H): 36.00 x 24.00 x 8.00 inches (914 x 610 x 203 mm)
• Weight: 68 lbs
• Manufacturer Part Number: A36H2408SSLP
• Country of Origin: United States
• Order Minimum: 1 unit
• UL Listing: UL 508A Listed; Type 3R, 4, 4X, 12
• CSA Listing: cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12
• NEMA/EEMAC Type: 3, 3R, 4, 4X, 12, 13
• Ingress Protection: IEC 60529, IP66

Features

• 14 gauge stainless steel body and door with continuous welded seams ground smooth
• Seamless foam-in-place gasket for water-tight sealing
• Rolled lip around three sides of the door for enhanced sealing
• Stainless steel door clamp assembly with hasp and staple for padlocking
• Door removal via stainless steel continuous hinge pin
• High-impact thermoplastic data pocket included
• Collar studs provided for mounting optional panels
• Exterior hardware on Type 316L enclosures matches enclosure material
• Bonding provision on door and grounding stud on body for electrical safety
• Designed to meet NEMA Type 3RX requirements
• Made in USA
