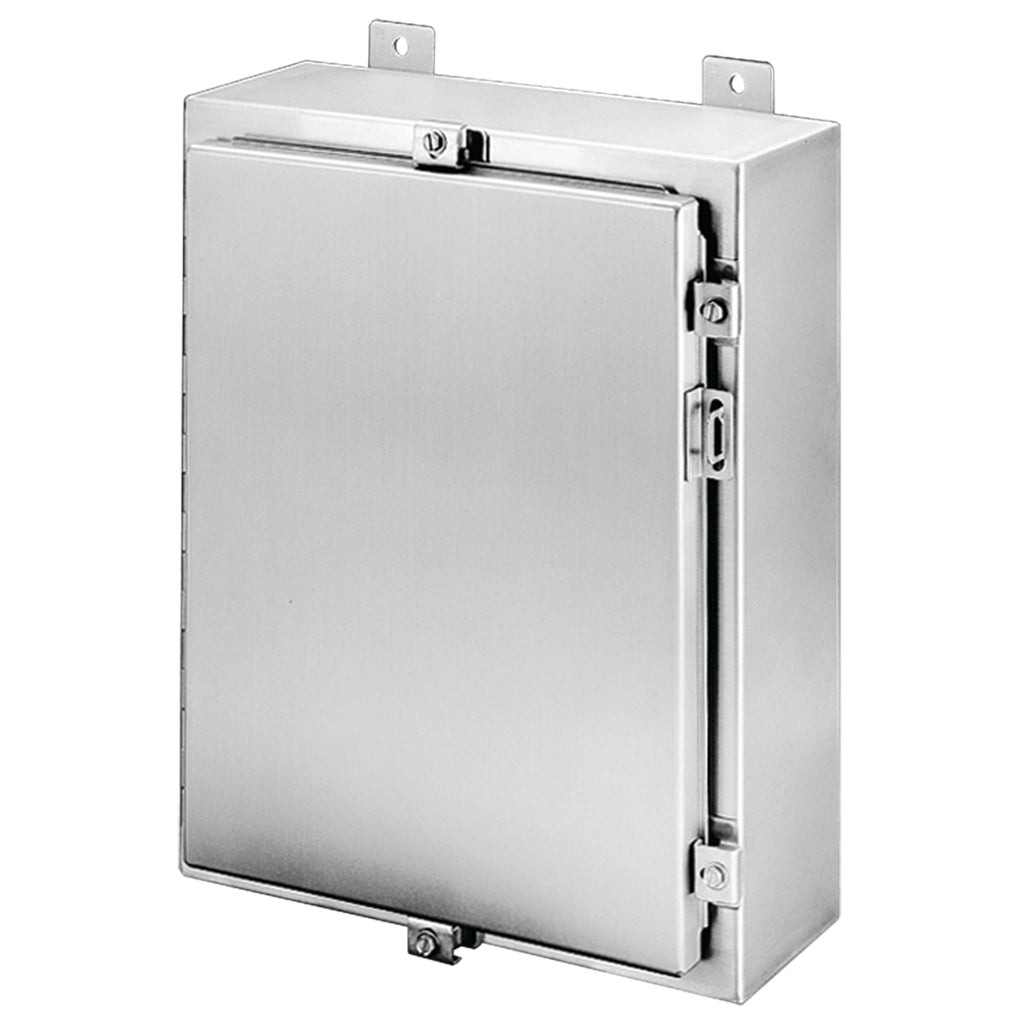

Wallmount Hinged with NEMA Clamps Type 4X, 24x24x6, Brushed, SS304 Continuous Hinge Enclosure

This stainless steel wallmount enclosure is designed for use in indoor and outdoor corrosive environments requiring a watertight seal. Ideal for electrical distributors and switchgear suppliers, it provides secure protection for electrical equipment and control panels. The enclosure features a continuous hinge with NEMA clamps, ensuring durability and ease of access. Its brushed stainless steel finish offers corrosion resistance, making it suitable for demanding lighting solutions and wire and cable applications.

Specifications

• Manufacturer: nVent Hoffman
• Manufacturer Part #: A24H2406SSLP
• Material: Stainless Steel (SS304)
• Finish: Brushed
• Dimensions (L x W x H): 29.10 in x 25.00 in x 8.20 in
• Depth: 152 millimeters
• Order Minimum: 1 unit
• Product Weight: 45.9 lbs
• Enclosure Rating: NEMA Type 4X
• Country of Origin: United States
• Made in USA: Yes

Features

• Continuous stainless steel hinge for enhanced durability
• NEMA clamps provide secure door fastening and watertight seal
• Constructed of corrosion-resistant SS304 stainless steel
• Brushed finish for aesthetic and corrosion protection
• Designed for harsh indoor and outdoor corrosive environments
• Includes provision for padlock with lockable hasp
• Removable door with continuous hinge pin for ease of maintenance
• Foam gasket sealing ensures water-tight protection against contaminants
• Small data compartment included for documentation or identification
