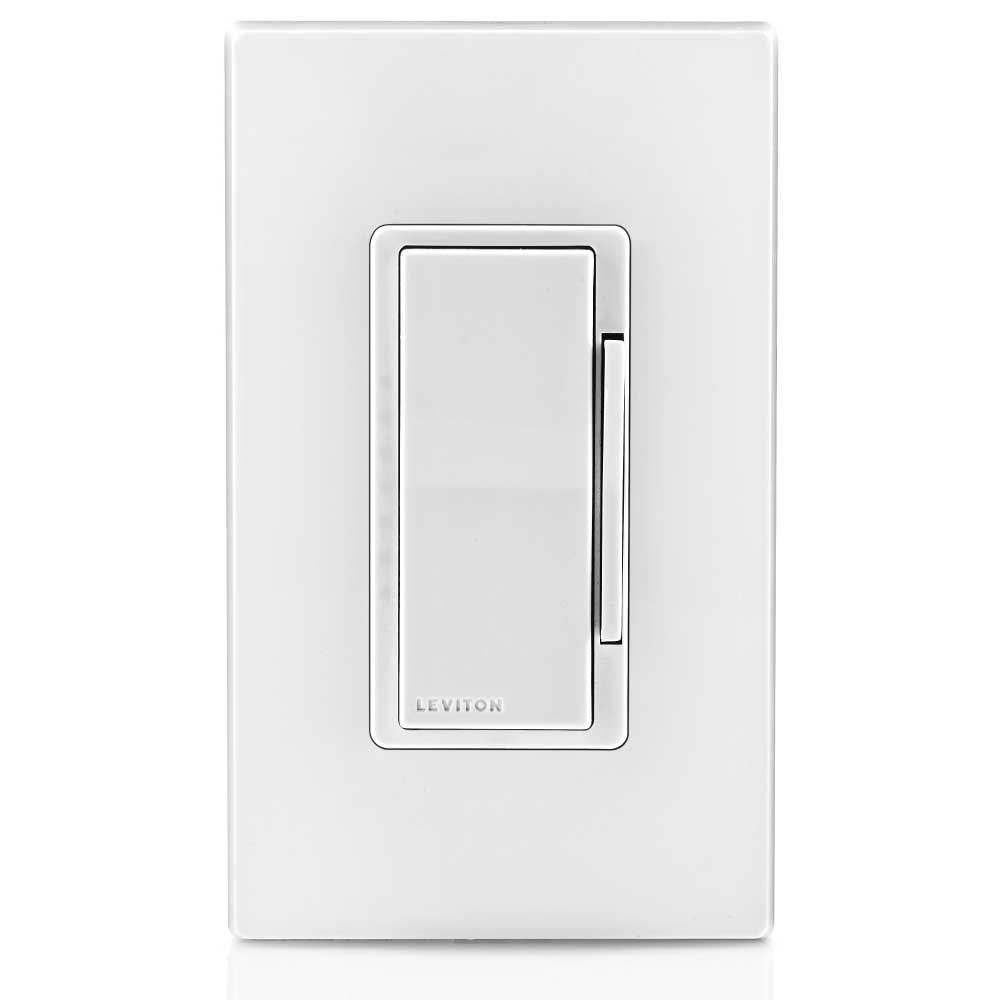

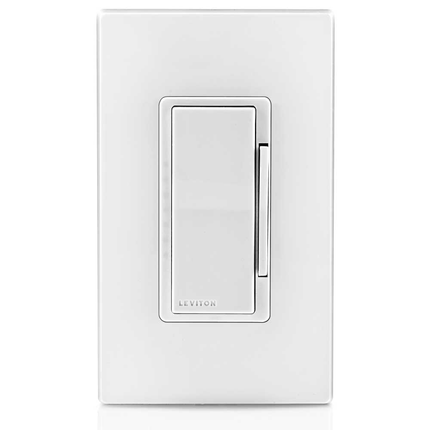

Wall Switch, 0-10V Dimmer, 120-277V, Wireless – Wireless 0-10V Wall Dimmer

This wireless Decora 0-10V wall dimmer operates on 2.4GHz frequency and supports input voltages from 120 to 277VAC at 50/60Hz. Designed for precise lighting control, it features an 8A load capacity and 0-10V sinking control with a 50mA rating. Ideal for electrical distributors and lighting solutions providers, this device integrates seamlessly into wire and cable setups and serves as a reliable component for switchgear suppliers managing commercial and residential lighting systems.

Specifications

• Input Voltage: 120-277VAC, 50/60Hz
• Load Capacity: 8A
• Control Type: 0-10V sinking, 50mA
• Wireless Frequency: 2.4GHz mesh network (IEEE 802.15.4)
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Storage Temperature Range: -40°C to 85°C
• Pollution Degree: 2
• Impulse Voltage Rating: 6000 V
• Network Range: Up to 75 in (190 cm) between devices
• Ingress Protection Rating: IP10
• Product Weight: 0.4467 lb
• Color: White (with available color change kit for Ivory and Light Almond)
• Manufacturer Part Number: ZS057-D0Z

Features

• Wireless 0-10V dimming control compatible with LED, CFL, and electronic ballast loads
• Decora-style wall switch design for easy integration into standard wall boxes
• Integrated LED locator indicator illuminates when loads are off for easy identification
• Supports Class 1 and Class 2 low-voltage control wiring configurations
• Color change kit available to match Ivory and Light Almond decor
• Complies with FCC Part 15 and Industry Canada standards for wireless operation
• Five-year limited warranty from manufacturer
