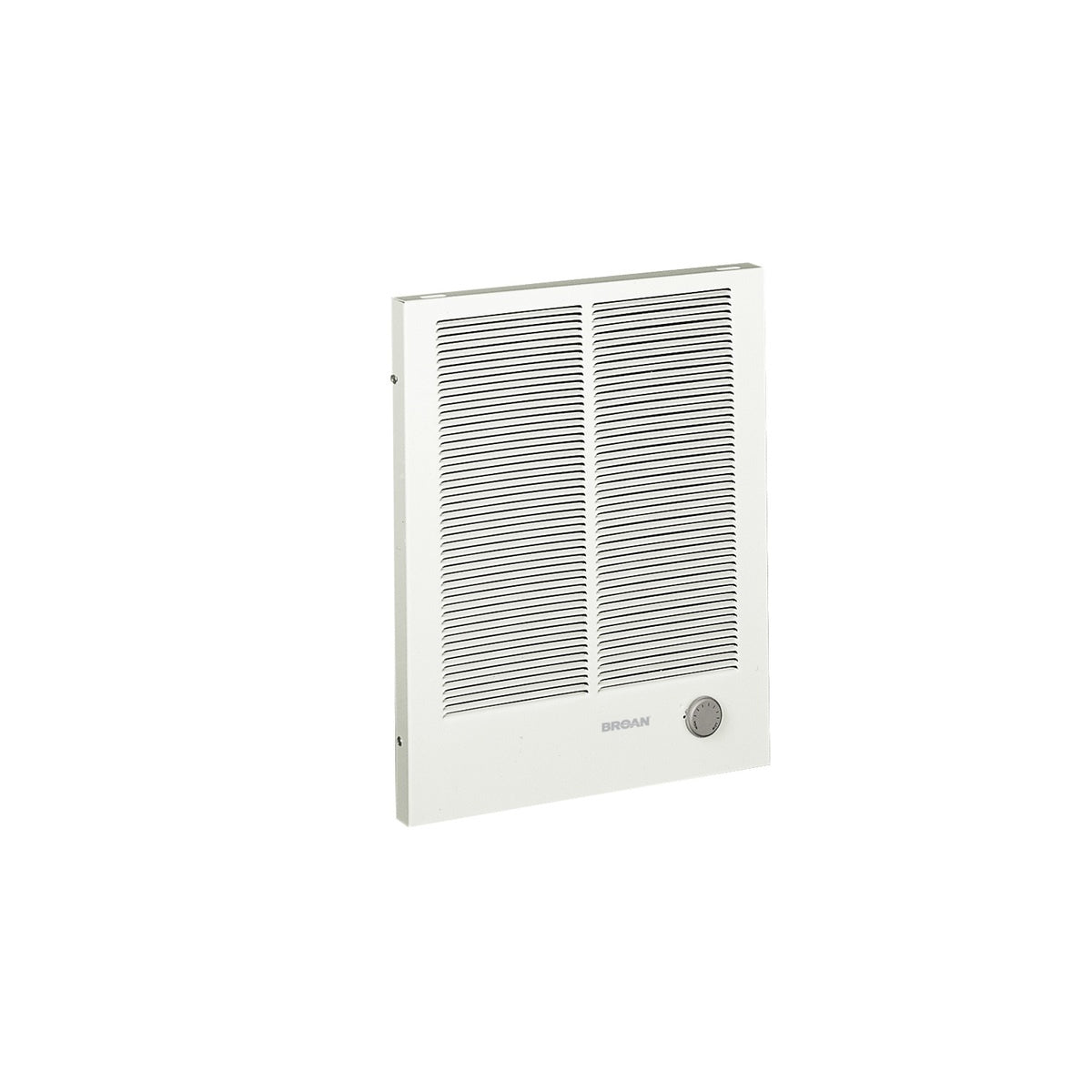

Wall Heater, High Capacity, White, 2000/4000W 240VAC, 1500/3000W 208VAC - High-Capacity Wall Heater

This Broan high-capacity wall heater is designed for both commercial and residential applications, providing reliable fan-forced heat. Suitable for electrical distributors and lighting solutions providers seeking durable heating equipment, this unit operates on 240 VAC or 208 VAC with field-convertible wattage options. It features a white baked enamel grille and a front-mounted thermostat for convenient temperature control.

Specifications

• Manufacturer Part #: 198
• Voltage: 240 VAC / 208 VAC
• Wattage (Factory Wired): 4000W / 2000W at 240 VAC, 3000W / 1500W at 208 VAC
• Grille: White, 18 gauge steel with downflow louvers
• Heating Element: Heavy-duty sheath element with steel-plate fins
• Thermostat: Front-mounted, snap-action heavy-duty disc-type
• Motor: Totally enclosed, permanently lubricated
• Thermal Overload: Manual reset protector
• Fan Delay: Yes, prevents cold air delivery and provides warm air as element cools
• Product Weight: 22 lbs

Features

• Sturdy 22 gauge steel housing with black epoxy paint finish
• Mounts directly to wall studs; suitable for new or existing construction
• Can be recess or surface mounted (surface mounting requires separate Model 85 Kit)
• Thermostat security cover for tamper-proof operation
• Factory-wired for easy field conversion to half-wattage
• U.L. Listed for safety and compliance
