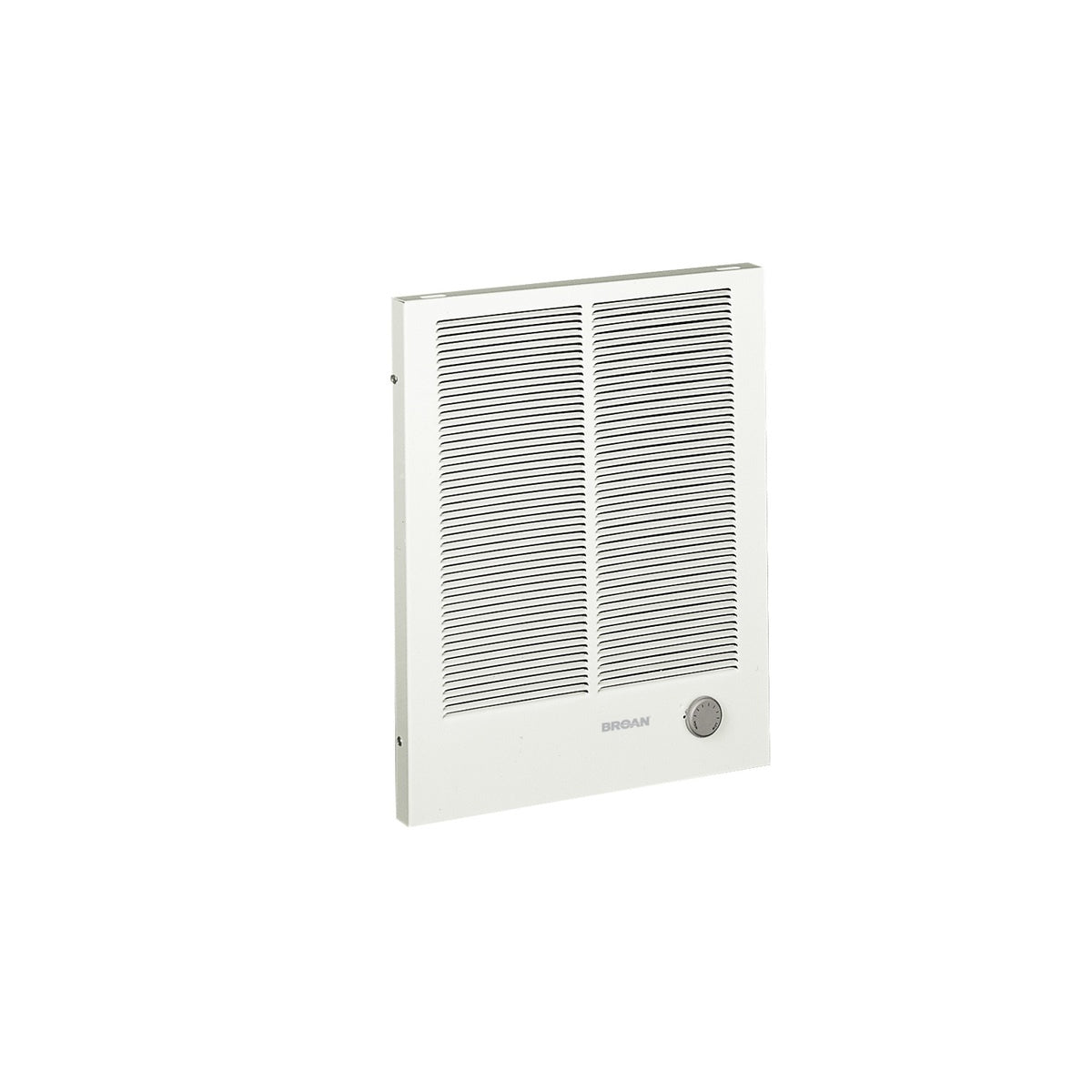

Wall Heater, High Capacity, White, 1000/2000W 240VAC, 750/1500W 208VAC - High-Capacity Wall Heater

This Broan high-capacity wall heater is designed for reliable heating in commercial and residential applications. It delivers fan-forced heat with easy field conversion between wattages, suitable for electrical distributors and switchgear suppliers requiring efficient heating solutions. The unit operates on 240 VAC or 208 VAC and features a white steel grille with a front-mounted thermostat for precise temperature control.

Specifications

• Manufacturer: Broan
• Model Number: 192
• Power Ratings: 2000W / 1000W at 240 VAC, 1500W / 750W at 208 VAC
• Voltage: 240 VAC / 208 VAC
• Amperage: 8.3 / 4.1 A at 240 VAC, 7.2 / 3.6 A at 208 VAC
• BTU/hr Output: 6827 / 3413 at 240 VAC, 5120 / 2560 at 208 VAC
• Grille Color: White
• Grille Material: 18 gauge steel
• Heating Element: Heavy-duty steel-sheathed element with plate fins
• Fan Delay: Yes
• Thermostat: Front-mounted, snap-action heavy-duty disc-type
• Thermal Overload: Manual reset protector
• Weight: 23 lbs

Features

• One-piece, heavy-duty 18 gauge steel grille with downflow louvers
• White baked enamel finish on grille
• Front-mounted thermostat with color-coordinated knob and security cover to prevent tampering
• Heating element designed for durability and efficient heat transfer
• Motor is permanently lubricated for maintenance-free operation
• Fan delay prevents cold air delivery during element heat-up and cool-down phases
• Can be recessed or surface mounted (surface mounting requires separate kit)
• UL Listed for safety and compliance

Downloads & Links

• Spec Sheet 192, 194, 198
• Heaters Room Sizing Guide
• Installation Guide 192, 194, 198
