Wall Heater, High-Capacity, 1000W Heater, White Grille, 120/240V.
SKU: #306151
Part: #9810WH
UPC: 784891328114
Wall Heater, High-Capacity, 1000W Heater, White Grille, 120/240V.
SKU: #306151
Part: #9810WH
UPC: 784891328114
Description

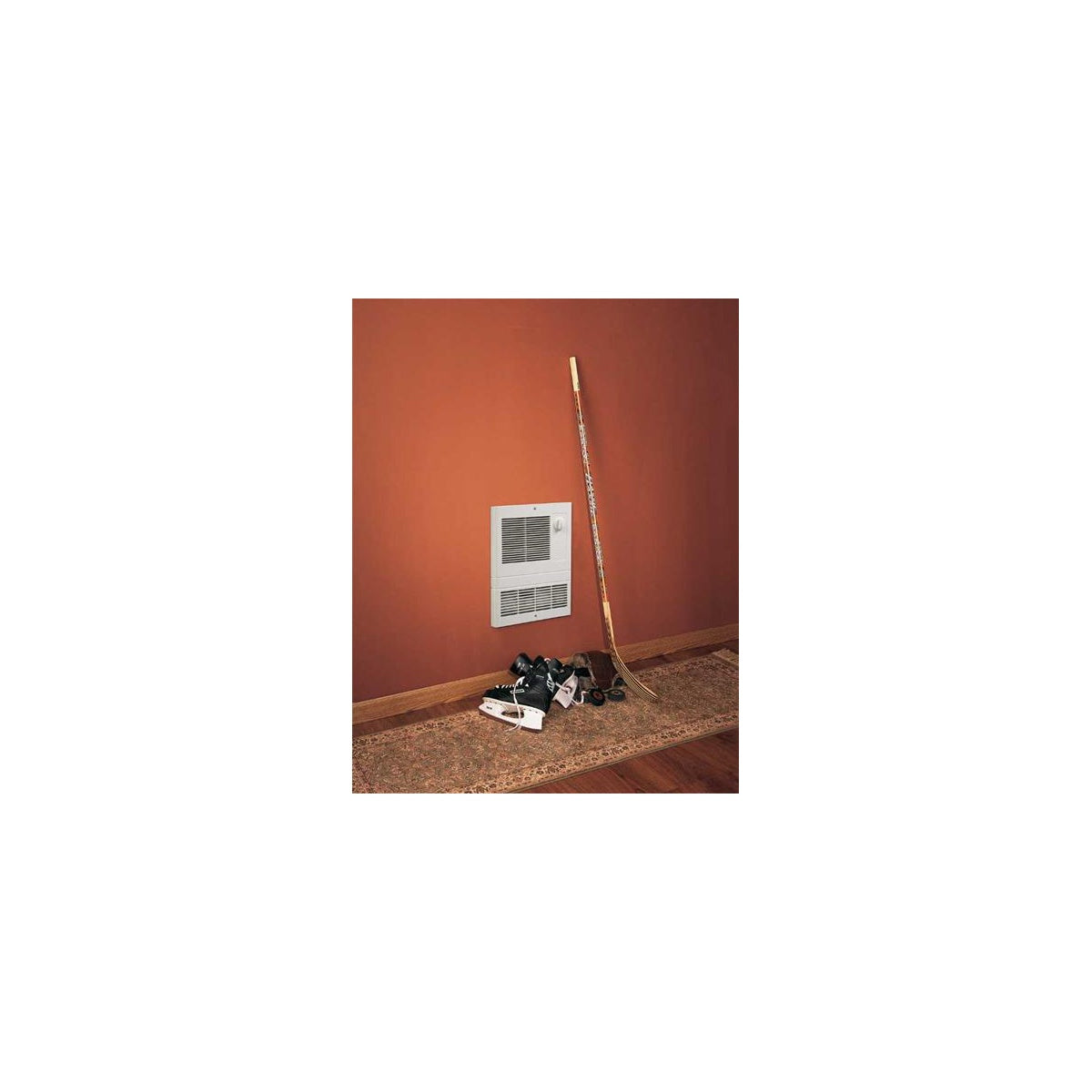

Wall Heater, High-Capacity, 1000W Heater, White Grille, 120/240V - High Capacity Electrical Wall Heater
This high-capacity wall heater is designed for heating lobbies, entryways, vestibules, and other areas requiring high wattage heating. Factory wired at 1,000W for 120V AC, it can be easily converted to 1,000W at 240V AC for added versatility. Suitable for use by electrical distributors and switchgear suppliers, this unit provides reliable heating solutions with a durable white grille and built-in adjustable thermostat.
Specifications
- Manufacturer: Broan
- Model Number: 9810WH
- Electrical Rating: 120/240 Volts
- Wattage: 1000 Watts
- Amps: 120V - 9.0A, 240V - 4.5A
- Housing Dimensions: 12-1/2” high x 10-1/2” wide x 3-3/8” deep
- Grille Dimensions: 14-3/4” high x 11-9/16” wide x 1” deep
- Housing Material: Galvanized steel
- Grille Material: Polymeric
- Grille Finish: White
- Element Type: Coiled resistance wire
- Element Material: Nickel-Chromium
- Impeller Type: Tangential
- Impeller Dimensions: 7-1/8” x 2-3/8”
- Motor: Thermally protected, shade pole, sleeve bearings
- Switch Type: On/Off switch integrated with thermostat
- Product Weight: 9.8 lbs
Features
- Attractive white grille that is exceptionally durable and heat resistant
- Quiet fan and downflow action for rapid circulation of heated air
- Factory wired for 120V operation with easy field conversion to 240V
- Built-in adjustable thermostat for precise temperature control
- Over-temperature protection via thermal fuse for safety
- Long-life motor bearings with extra-large oil reservoir
- Hang tab for simplified installation
