W34-35L LED Wall Pack Lighting Solutions

The W34-35L is a high-performance LED wall pack designed for outdoor lighting applications. Suitable for use by electrical distributors and switchgear suppliers, this fixture delivers efficient, reliable illumination for commercial and industrial environments. It provides a robust lighting solution with universal voltage compatibility and a durable glass lens, ideal for mounting on exterior walls with the lens facing downward.

Specifications

• Manufacturer: RAB
• Model Number: W34-35L
• Lumens: 4,171 lumens
• Input Wattage: 34 watts
• Efficacy: 124 lumens per watt
• Color Temperature: 5000 kelvins
• Color Accuracy (CRI): 84
• Lens Material: Glass
• Ambient Temperature Rating: 104 degrees Fahrenheit
• Minimum Starting Temperature: -40 degrees Celsius
• Product Weight: 7.4 lbs

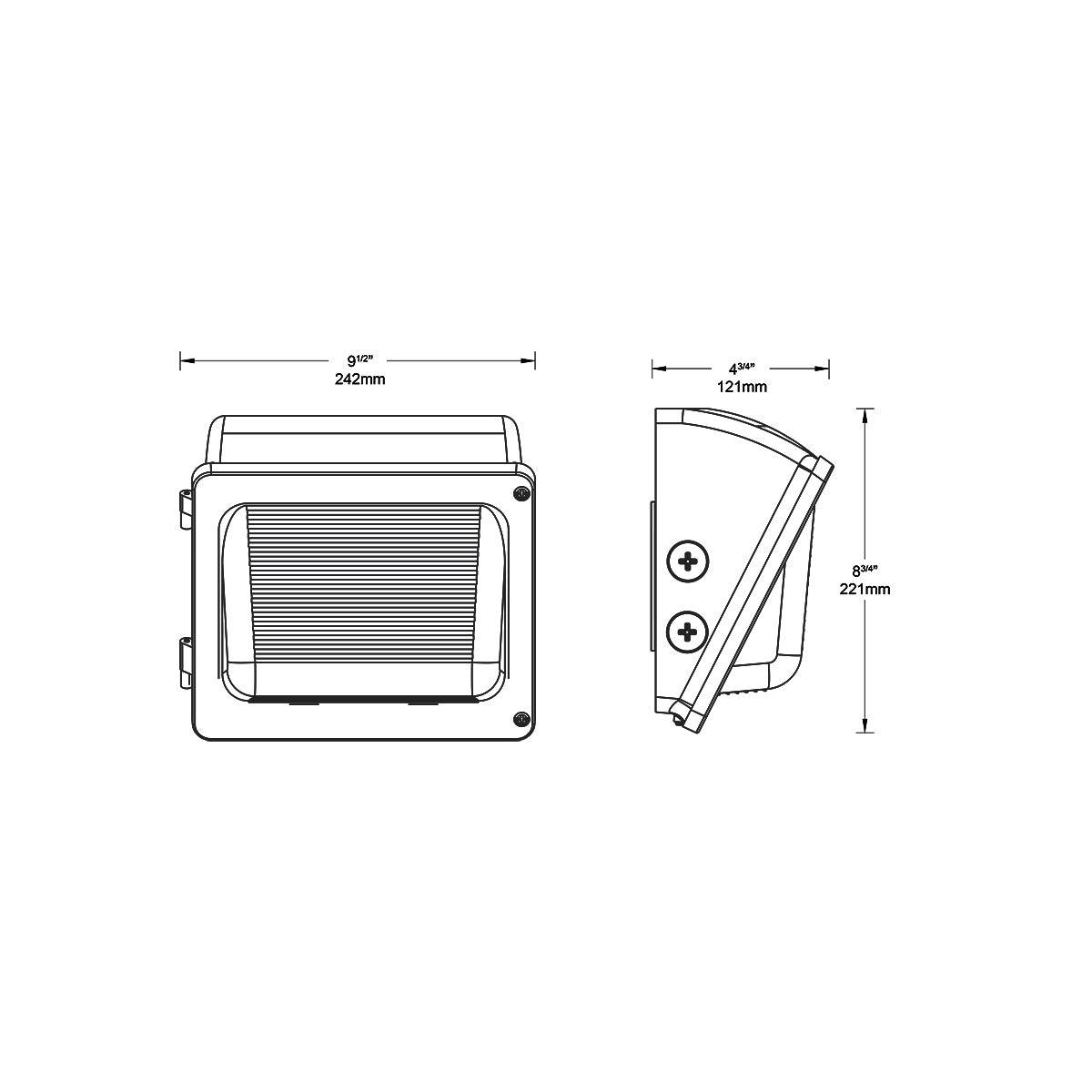

• Dimensions: 9 1/2" (242 mm) width x 8 3/4" (221 mm) height x 4 3/4" (121 mm) depth
• UPC: 019813833149

Features

• Universal voltage driver compatible with 120V to 277V, 50/60 Hz
• 0-10V dimmable for energy savings and lighting control flexibility
• Durable glass lens for effective light distribution and protection
• Designed for wall mounting with downward-facing lens to optimize outdoor illumination
• Meets DLC technical requirements for outdoor non-cutoff and semi-cutoff wall-mounted luminaires
• Low total harmonic distortion (THD) and high power factor for electrical efficiency
• Wide operating temperature range suitable for harsh environments
• Includes weatherproof sealing instructions for reliable outdoor use
