W34-30L LED Wall Pack Lighting Solutions

The W34-30L by RAB is a high-performance LED wall pack designed for outdoor lighting applications, ideal for electrical distributors and switchgear suppliers seeking energy-efficient lighting solutions. It delivers reliable illumination with a focus on durability and ease of installation, suitable for mounting on walls with the lens facing down.

Specifications

• Manufacturer: RAB
• Model Number: W34-30L
• Lumens: 3,604 lumens
• Efficacy: 123 lumens per watt
• Input Wattage: 29 watts
• Color Temperature: 5000 kelvins
• Color Accuracy (CRI): 84
• Lens Material: Glass
• Product Weight: 7.2 lbs
• Operating Ambient Temperature: Up to 104°F
• Minimum Starting Temperature: -40°C

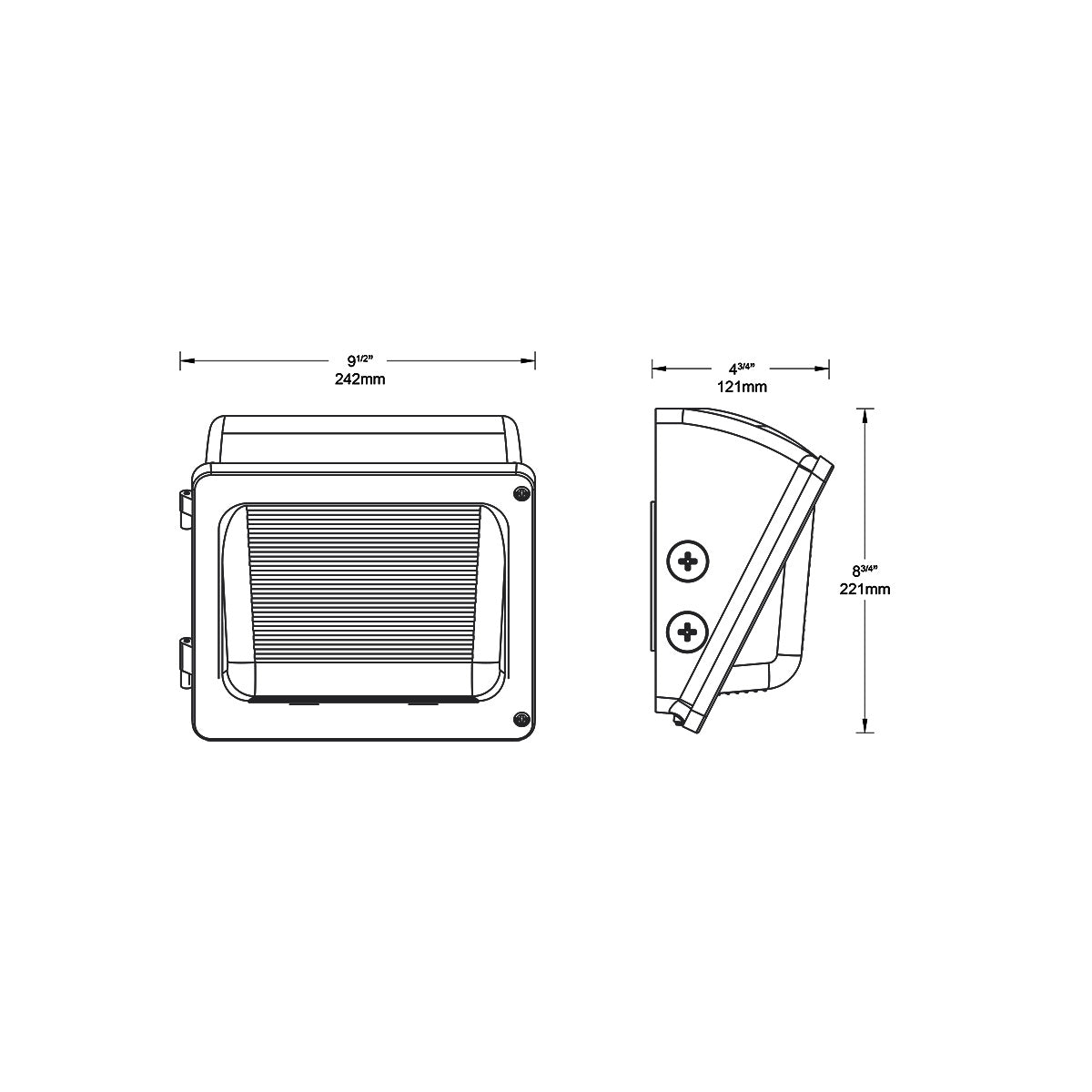

• Dimensions: 9 1/2" (W) x 8 3/4" (H) x 4 3/4" (D)
• Voltage Range: 120-277V, 50/60 Hz
• Power Factor: 0.996 (120V), 0.926 (277V)
• Total Harmonic Distortion: 3.46% (120V), 4.25% (277V)
• BUG Rating: B1-U3-G1

Features

• Energy-efficient LED technology with high efficacy of 123 lumens per watt
• Durable glass lens for optimal light distribution and protection
• Wide operating temperature range ensures reliable performance in harsh environments
• Easy installation with standard junction box compatibility and secure mounting options
• 0-10V dimmable driver for flexible lighting control
• High color rendering index (CRI 84) for accurate color representation
• Low total harmonic distortion and high power factor for electrical efficiency

Downloads & Links

• Instructions
• LM79
• Spec Sheet
