VXBR2F42 Compact Fluorescent Wall Mount Fixture

The VXBR2F42 by RAB Lighting is a durable, weatherproof wall-mounted lighting fixture designed for compact fluorescent lamps up to 42 watts. Ideal for use by electrical distributors and lighting solutions providers, this fixture is suitable for wet locations and offers reliable illumination with low glare and even light distribution. Its robust die cast aluminum construction and clear prismatic heat-resistant glass globe make it a dependable choice for commercial and industrial applications requiring secure and efficient lighting solutions.

Specifications

• Manufacturer Part #: VXBR2F42
• Input Wattage: 46 watts
• Lumens: 3,200 lumens
• Efficacy: 69 lumens per watt
• Construction Type: Die Cast Aluminum with stainless steel screws
• Weight: 8.0 lbs
• Color: Natural
• Socket Type: CFL White thermoplastic with integral clips for lamp retention
• Ballast Type: Electronic High Power Factor (HPF) QT
• Voltage Compatibility: Factory wired for 120V; multi-tap units available for 120V, 208V, 240V, 277V (field wiring required)
• Compliance: UL Listed for wet locations, UL Standard 1598
• Ballast Minimum Starting Temperature: 0°F

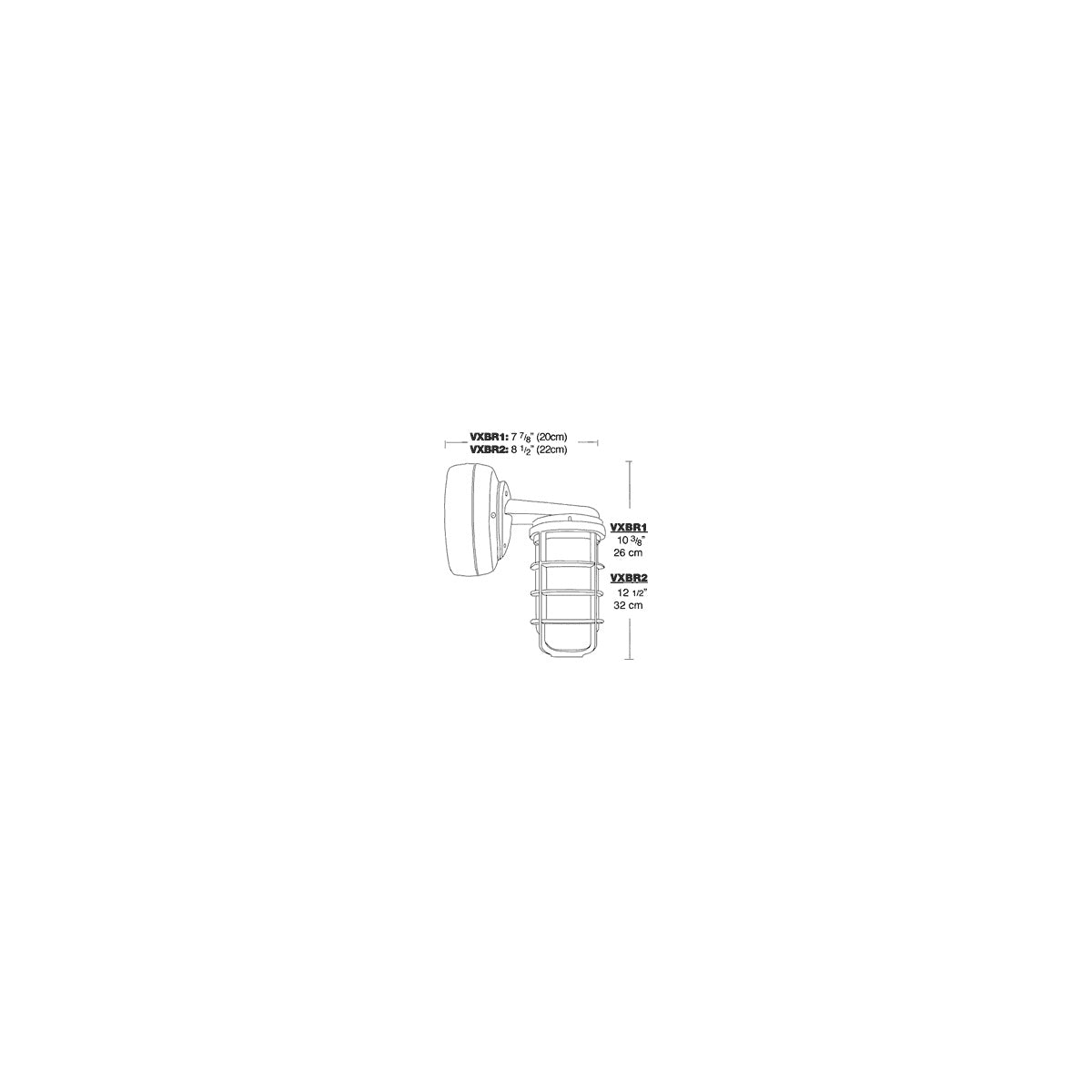

• Dimensions: 7 7/8" (20 cm) housing width, 10 3/8" (26 cm) height to top of housing, 12 1/2" (32 cm) length including globe

Features

• Weatherproof ballast box suitable for wet locations
• Die cast aluminum housing and guard for superior durability
• Clear prismatic heat-resistant glass globe for low glare and even light distribution
• All stainless steel hardware ensures corrosion resistance
• Set screw guard securely holds protective cage in place
• High temperature silicone internal gaskets for enhanced sealing
• Ballast housing mounts to any standard junction box
• Close-up plugs designed for Phillips or slotted screwdrivers for easy installation
• Designed for lamp base-up installation only when used outdoors
• Buy American Act compliance available upon request
